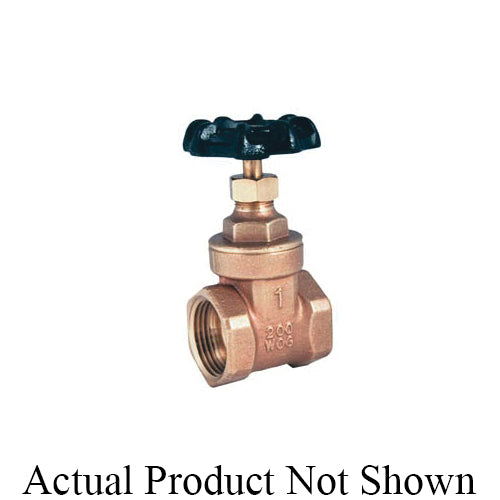

T-400NL - 1-1/4" Compact Pattern Gate Valve - Brass - FNPT

T-400NL - 1-1/4" Compact Pattern Gate Valve - Brass - FNPT

104-466NL

$47.97
$47.97 $59.17
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Durable, all brass body construction
• Non-rising stem design is compact and reliable
• Solid, fully-guided disc-wedge
• Integral seats are precision-ground to match each disc-wedge
• Not suitable for steam service
• Cadmium plated steel handwheel nut, aluminum identification disc cast iron handwheel brass packing nut, packing gland follower, lead free forged brass stem locknut, lead free cast brass disc wedge
• Lead free
• Cast brass body

DIMENSIONS

WEIGHT

1.06 lb

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

SPECIFICATIONS

Actuator Type

Handwheel

Body Material

Brass

Domestic/Import

Import

End Style

FNPT

Hand Wheel Diameter

2.4 in

Inlet to Outlet Length

2.09 in

Media

Gas/Oil/Water

Nominal Size

1-1/4 in

Port Type

Conventional

Pressure Rating

200 psi

Series

T-400NL

Softgoods Material

NBR Stem Packing

Top to Inlet Center

3.86 in

Trim Material

Forged Brass

Type

Compact Pattern
