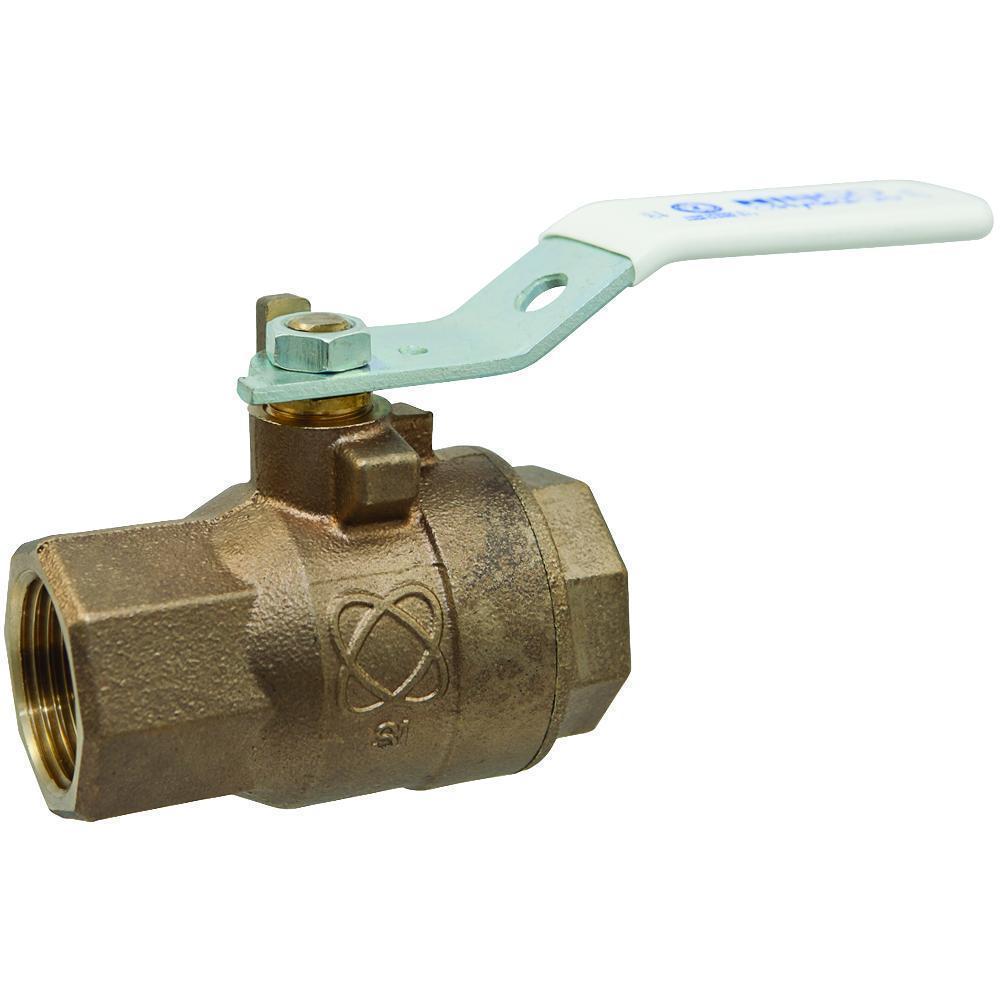

T-585-80-Lf - 1/2" Two-Piece Ball Valve - Silicon Bronze

T-585-80-Lf - 1/2" Two-Piece Ball Valve - Silicon Bronze

NLB950X6

$35.76
$35.76 $1,083.40
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300F
• Full port
• Blowout-proof stem
• Standard lever handle, optional NIB-SEAL, Locking Lever, Memory Stop, Extended Lever, Round and Wing
• Threaded end connections
• Dezincification resistant

DIMENSIONS

LENGTH

4.75 in

WIDTH

2.5 in

HEIGHT

2.5 in

WEIGHT

0.6 lb

WARRANTY

5 years Limited

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
User Manual
Warranty Information
Product Brochure

PRODUCT OVERVIEW

The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

SPECIFICATIONS

Actuator Type

Standard Lever Handle

Ball Material

Silicon Bronze

Body Material

Silicon Bronze

Dimensions

2-1/2 in H x 2-1/2 in W x 4-3/4 in L

Domestic/Import

Domestic

End Style

Threaded

Inlet to Outlet Length

2.23 in

Media

Gas/Water

Nominal Size

1/2 in

Orifice Size

0.5 in

Port Type

Full

Pressure Class

0.65 lb

Pressure Rating

600 psi

Series

T-585-80-LF

Softgoods Material

PTFE
