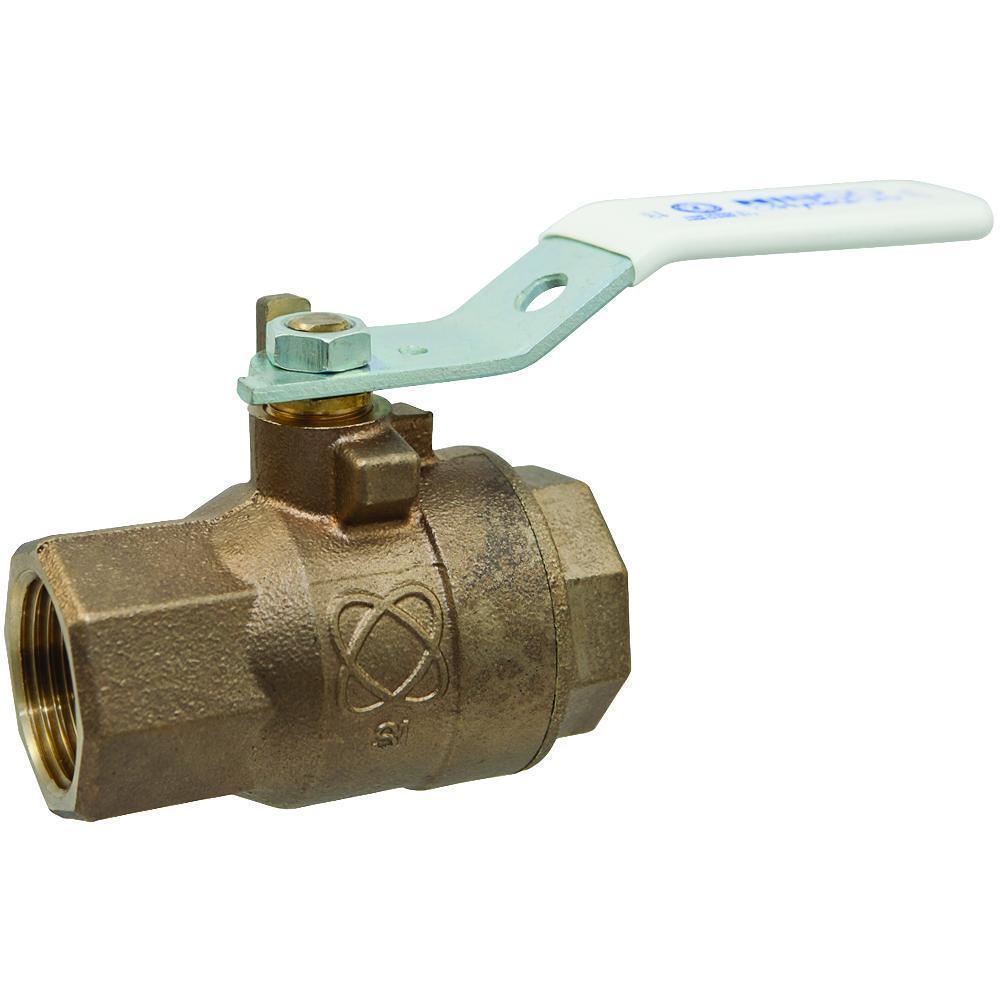

T-585-80-Lf - Ball Valve - Silicon Bronze - Thread

Name: T-585-80-Lf - Ball Valve - Silicon Bronze - Thread
Brand: NIBCO
SKU: NLB951XB
Price: 170.24 USD
Availability: InStock

NLB951XB

Nominal Size 1-1/4 in 1 in 1-1/2 in 3/4 in

$170.24

$170.24 ~~$1,083.40~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 300F
• Standard lever handle, optional NIB-SEAL, Locking Lever, Memory Stop, Extended Lever, Round and Wing
• Threaded end connections
• Dezincification resistant

DIMENSIONS

LENGTH	8.62 in
WIDTH	4.25 in
HEIGHT	2.31 in

WARRANTY

Limited

DOCUMENTS & RESOURCES

Specification Sheet

Installation Instructions

User Manual

Warranty Information

Product Brochure

PRODUCT OVERVIEW

The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features threaded ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

SPECIFICATIONS

Actuator Type	Standard Lever
Ball Material	Silicon Bronze
Body Material	Silicon Bronze
Domestic/Import	Domestic
End Style	Thread
Inlet to Outlet Length	3.34 in
Media	Water
Nominal Size	1 in
Orifice Size	1 in
Port Type	Full
Pressure Rating	600 psi
Series	T-585-80-LF
Softgoods Material	PTFE
Temperature Rating	300 deg F
Top to Inlet Center	2.48 in
