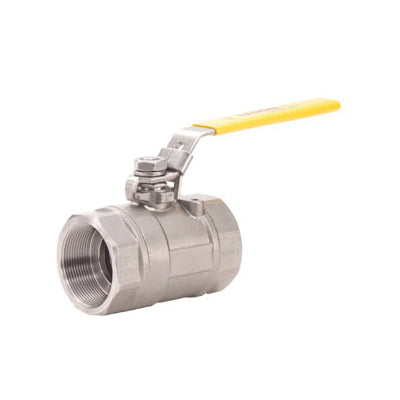

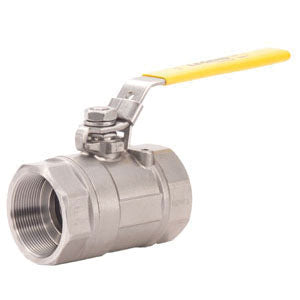

T-715 - 1" 2-Piece Ball Valve with Lock Handle - FNPT

T-715 - 1" 2-Piece Ball Valve with Lock Handle - FNPT

113-105



Regular price $77.18
Sale price $77.18 Regular price $119.10
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Heavy duty 2-piece investment cast body design
• Bottom loaded Blow-out proof stem
• Fiber reinforced graphite impregnated seats maintain their shape in high-pressure service
• Integral, tapped mounting pad for actuation or panel attachment
• 150 psi steam working pressure
• Large Port Design

DIMENSIONS

WEIGHT

1.62 lb

WARRANTY

5 Years

PRODUCT OVERVIEW


Heavy-duty 2-Piece investment cast body design, 316 stainless steel body and end adaptor. Bottom-loaded blow-out proof stem. Equipped with a latch-lock handle, 304 stainless steel trim, 316 stainless steel stem and ball. Ideal for commercial and industrial applications. Fiber reinforced, graphite impregnated seats maintain their shape in high pressure service. Integral, tapped mounting pad for actuation or panel attachment. Available in sizes and configurations: 1/4 to 2 in, FNPT x FNPT.


SPECIFICATIONS

Ball Material

316 Stainless Steel

Body Material

316 Stainless Steel

Domestic/Import

Import

End Style

FNPT

Inlet to Outlet Length

3.31 in

Nominal Size

1 in

Port Type

Standard

Pressure Rating

2000 psi CWP

Series

T-715

Top to Inlet Center

2.52 in

Trim Material

Stainless Steel Stem and Graphite Impregnated RTFE Seat

Type

2-Piece
