LEGEND

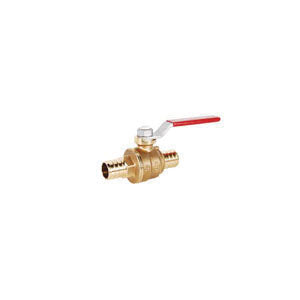

T-806NL - 1/2" Ball Valve - Brass - PEX

T-806NL - 1/2" Ball Valve - Brass - PEX

101-585NL

$11.20
$11.20 $16.94
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Lead free forged brass body/end adapter, Lead free chrome plated forged brass ball stem, PTFE anti-friction thrust washer/seat/anti-friction washer, fluorocarbon stem O-Rings, Dacromet® coated steel lever handle nut, tamper-evident
• Durable, compact, forged brass body is ideal for confined plumbing installations and PEX crimp-type connections are not suitable for hydronic heating applications
• Lead free design is suitable for all no lead potable water installations in full compliance of all Lead free plumbing laws
• Maintenance-free dual O-Ring, Blow-out proof stem design is superior to gland-follower designs
• PEX barb end connections are designed for PEX tubing conforming to ASTM F 876 or F 877
• Self-cleaning chrome plated ball resists mineral build-up and scaling in varying water conditions
• Maintenance-free design
• PTFE thrust washer and fluorocarbon stem O-ring

DIMENSIONS

HEIGHT

1.76 in

WEIGHT

0.27 lb

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

Specification Sheet
Product Brochure

PRODUCT OVERVIEW

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

SPECIFICATIONS

Actuator Type

Lever Operated

Ball Material

Brass

Body Material

Brass

Dimensions

1.76 in H

Domestic/Import

Import

End Style

PEX

Inlet to Outlet Length

2.62 in

Media

Water

Nominal Size

1/2 in

Port Type

Full

Pressure Rating

400 psi

Series

T-806NL

Softgoods Material

PTFE/Fluorocarbon

Trim Material

Brass Stem and PTFE Seat
