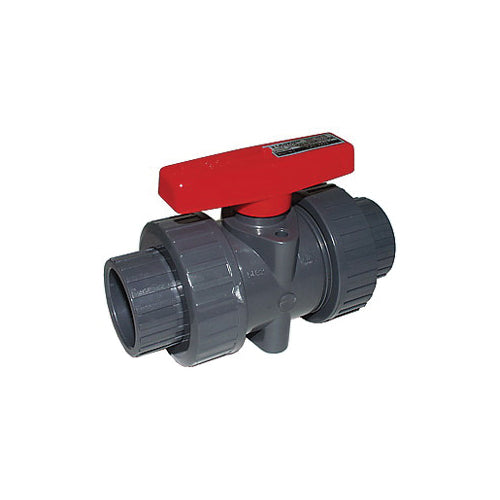

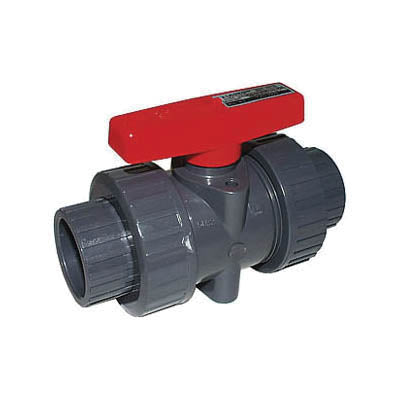

T/S-603 - 1-1/2" True Union Ball Valve - Upvc - FNPT

Name: T/S-603 - 1-1/2" True Union Ball Valve - Upvc - FNPT
Brand: LEGEND
SKU: 201-207
Price: 53.59 USD
Availability: InStock

201-207

$53.59

$53.59 ~~$82.69~~

Shipping calculated at checkout.

How you'll get this item:

MORE PRODUCT INFORMATION

FEATURES

• ABS handle UPVC end adapters/union nuts/seat carrier, EPDM union O-Rings/carrier O-Ring
• Full ports allow maximum flow and minimum pressure drop or turbulence
• Ball valves are constructed of ASTM D1784 virgin UPVC resin
• Unique double union, single bayonet-style lock facilitates ease of repair and/or maintenance by allowing removal of the valve body from the pipeline
• In-line, one way flow style
• EPDM stem O-ring

DIMENSIONS

HEIGHT	5.38 in
WEIGHT	2.74 lb

WARRANTY

5/25 Years

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

SPECIFICATIONS

Actuator Type	T-Handle
Ball Material	UPVC
Body Material	UPVC
Dimensions	5.38 in H
Domestic/Import	Import
End Style	FNPT
Inlet to Outlet Length	6-3/4 in
Nominal Size	1-1/2 in
Port Type	Full
Pressure Rating	150 psi
Series	T/S-603
Softgoods Material	EPDM
Temperature Rating	140 deg F
Trim Material	UPVC Stem and PTFE Seat

T/S-603 - 1-1/2" True Union Ball Valve - Upvc - FNPT

$53.59
