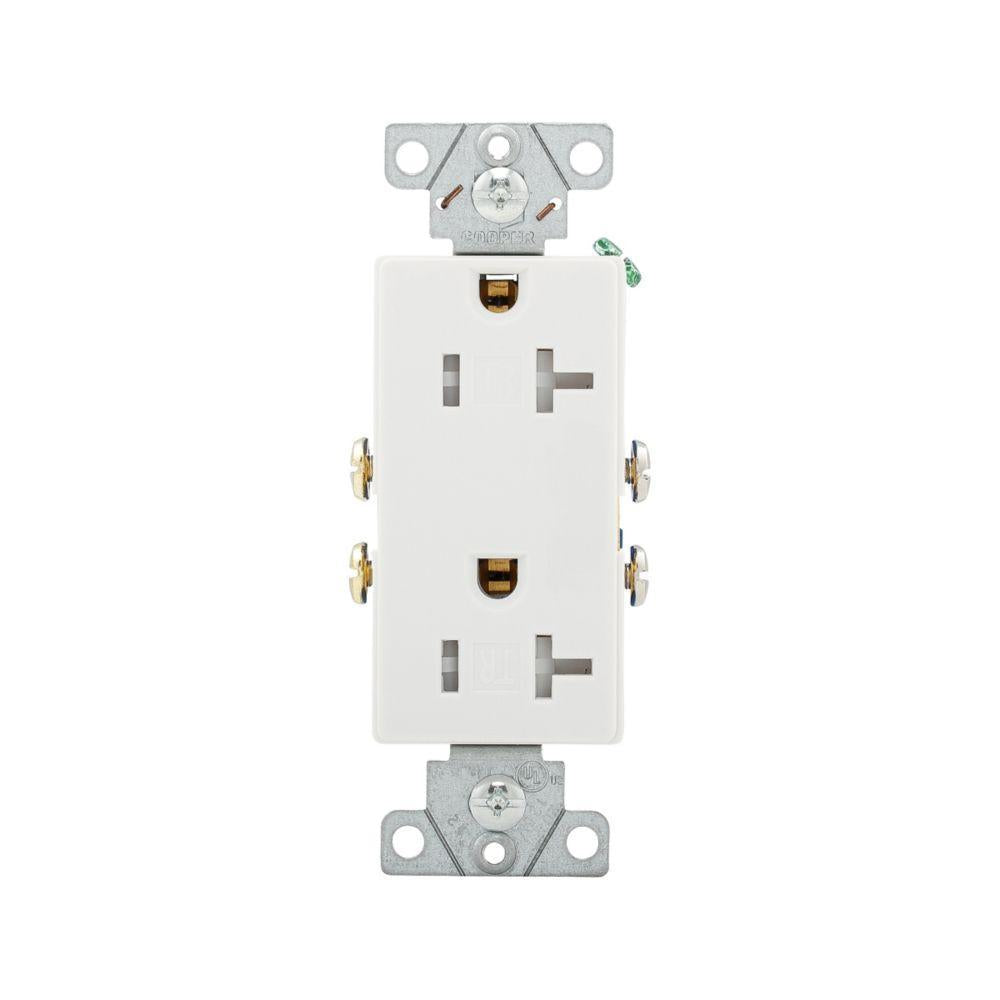

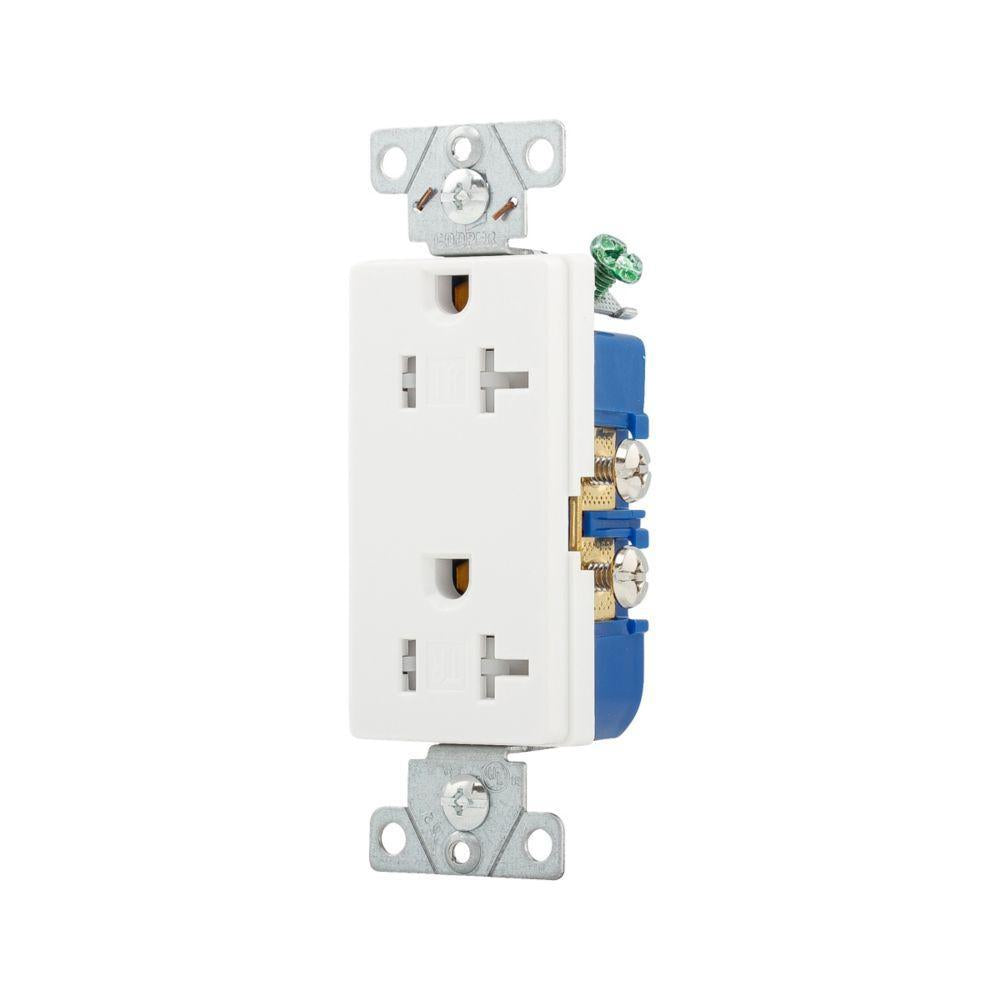

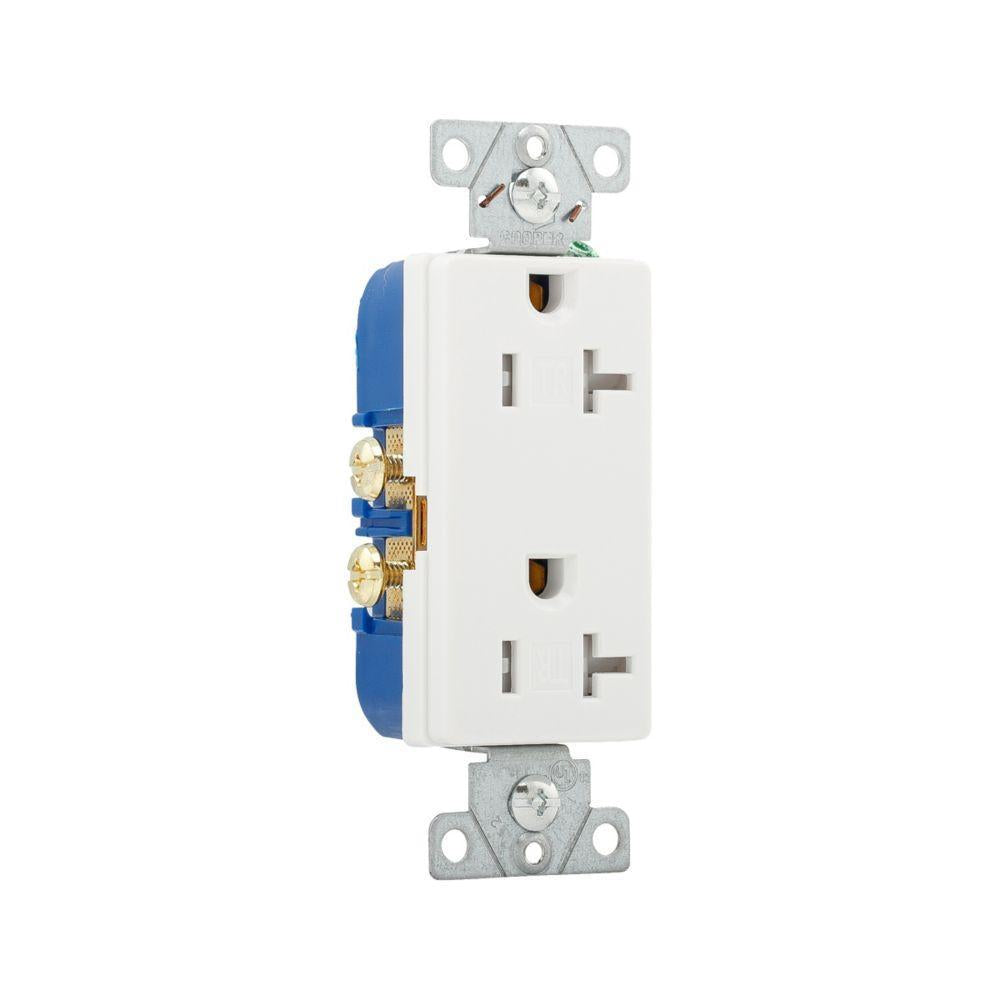

Tamper Resistant Straight Blade Receptacle - Thermoplastic
Tamper Resistant Straight Blade Receptacle - Thermoplastic
TR1307W-BOX
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• 14 to 10 AWG wire
DIMENSIONS
DIMENSIONS
|
LENGTH |
1.31 in |
|---|---|
|
WIDTH |
0.74 in |
|
HEIGHT |
4.19 in |
|
WEIGHT |
0.15 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
Eaton’s straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.
SPECIFICATIONS
|
Amperage Rating |
20 A |
|---|---|
|
Dimensions |
1.31 in L x 0.74 in W x 4.19 in H |
|
Material |
Thermoplastic |
|
NEMA Rating |
NEMA 5-20R |
|
Number of Poles |
2 |
|
Number of Wires |
3 |
|
Terminal Type |
Screw |
|
Type |
Decorator Duplex Grounding Tamper Resistant |
|
Voltage Rating |
125 V |
