Item Status: Discontinued

Availability is limited to remaining stock.

COMMERCIAL

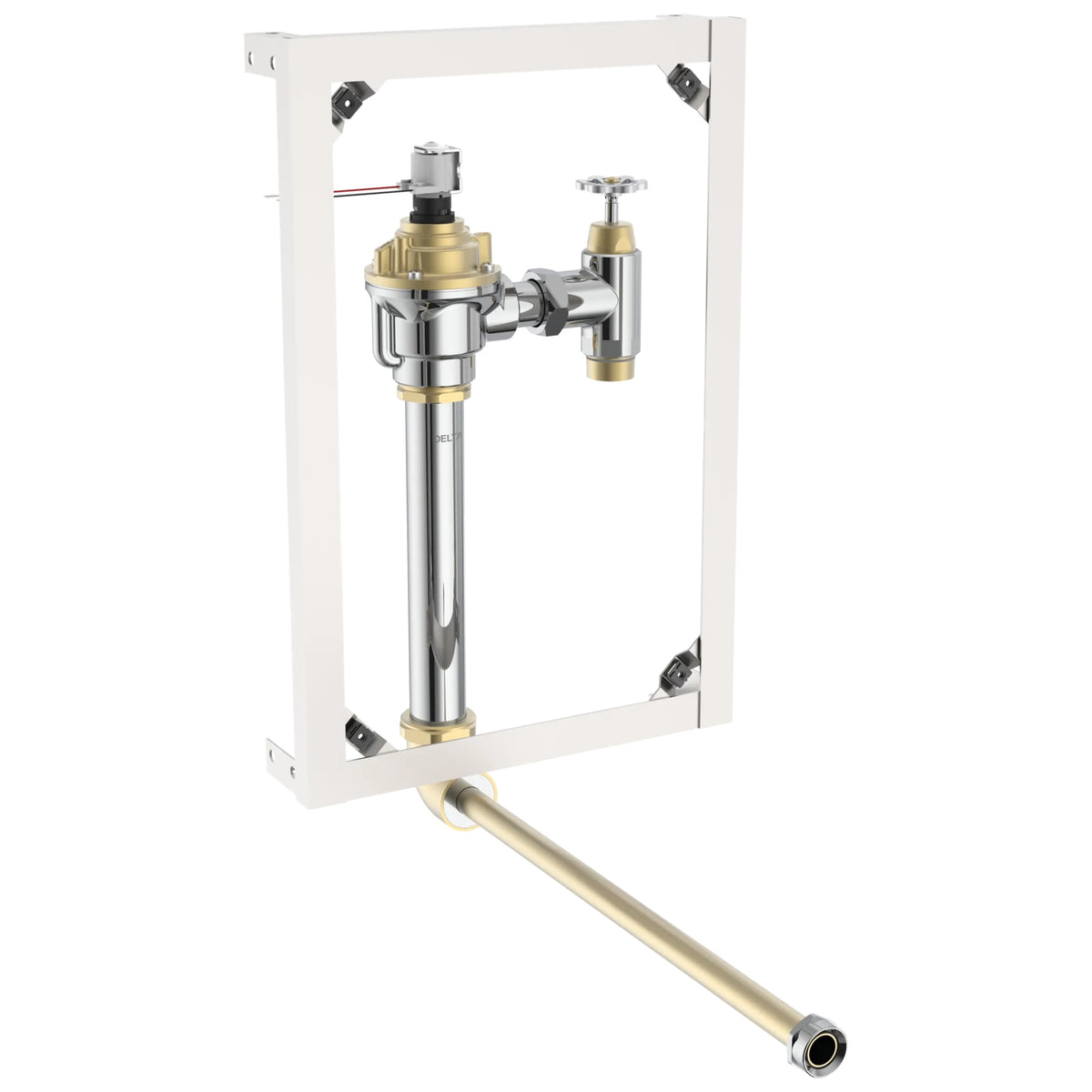

Teck - Rough-in Electronic Activated Flush Valve - 3/4" Spud

Teck - Rough-in Electronic Activated Flush Valve - 3/4" Spud

1600T6402ARI-19

$390.99
$390.99 $594.15
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

COMPLEMENTARY PRODUCTS

MORE PRODUCT INFORMATION

FEATURES

• Rough-in ONLY (Trim 1600T6402ARI-19 sold separately)
• Adjustable 114mm (4.5 in) to 132mm (5.19 in) inlet/valve outlet centers
• Quiet action Teck chloramine resistant diaphragm for smooth operation
• Renewable seat
• Vacuum breaker
• For siphon jet urinal with 3/4 in back inlet

DIMENSIONS

WEIGHT

11.9 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

SPECIFICATIONS

Collection

Teck®

Connection Location

Back

Domestic/Import

Import

Fixture Type

Syphon Jet

Flush Rate

0.5 gal

Power Source

24 V AC Hard-Wired

Pressure Rating

25 psi

Sensor Range

12 to 28 in

Series

1600T

Spud Coupling

3/4 in

Type

Concealed Rough-In

Valve Design

Diaphragm
