DOTTIE

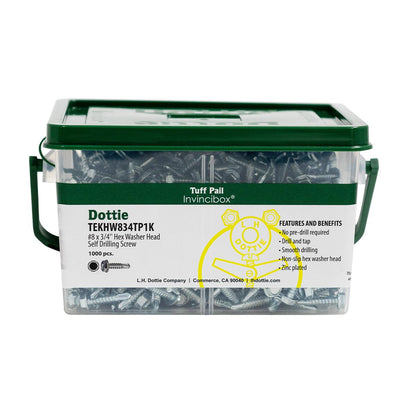

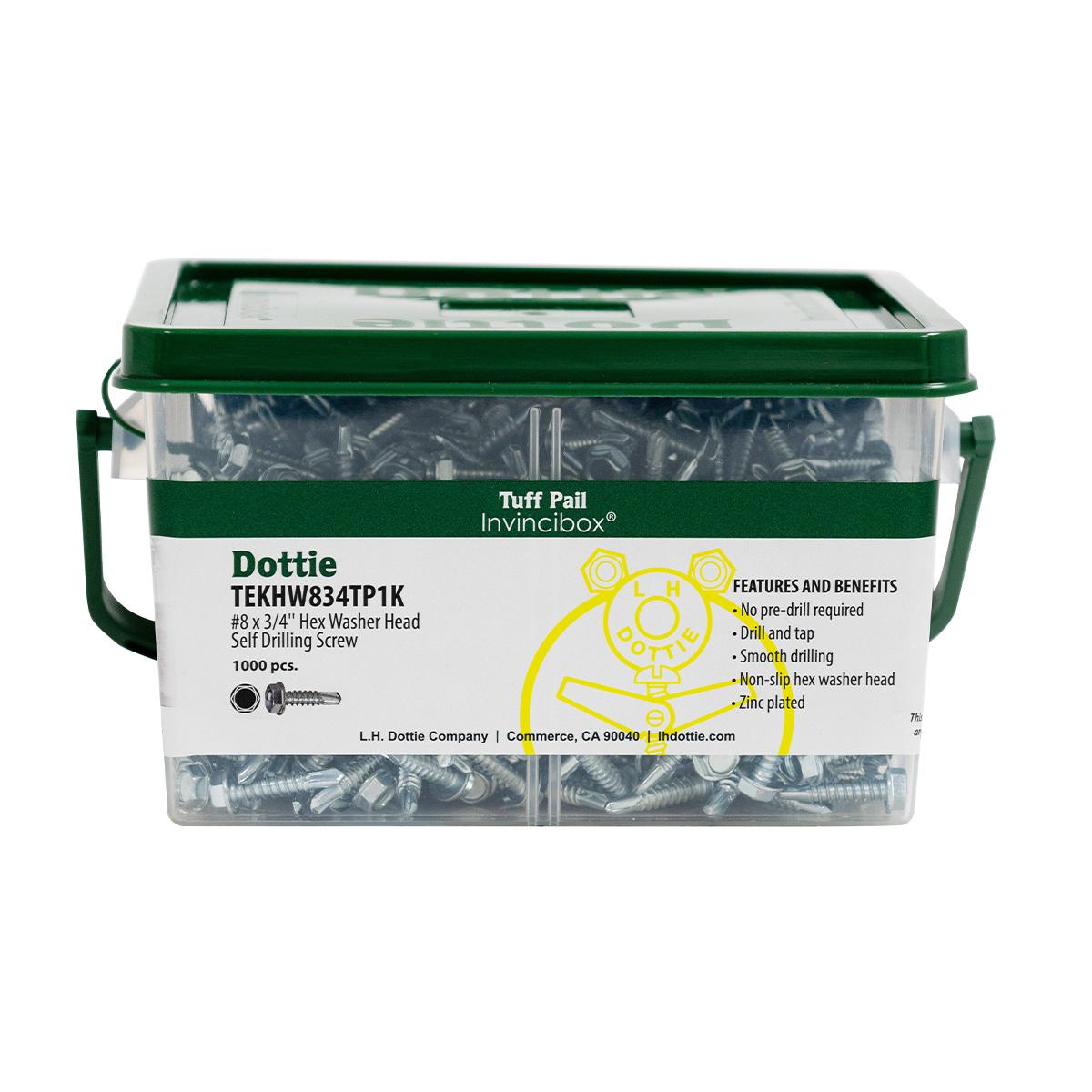

Tekhw - Drilling Screw - #8

Tekhw - Drilling Screw - #8

TEKHW834TP1K

$11.49
$11.49 $7.51
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

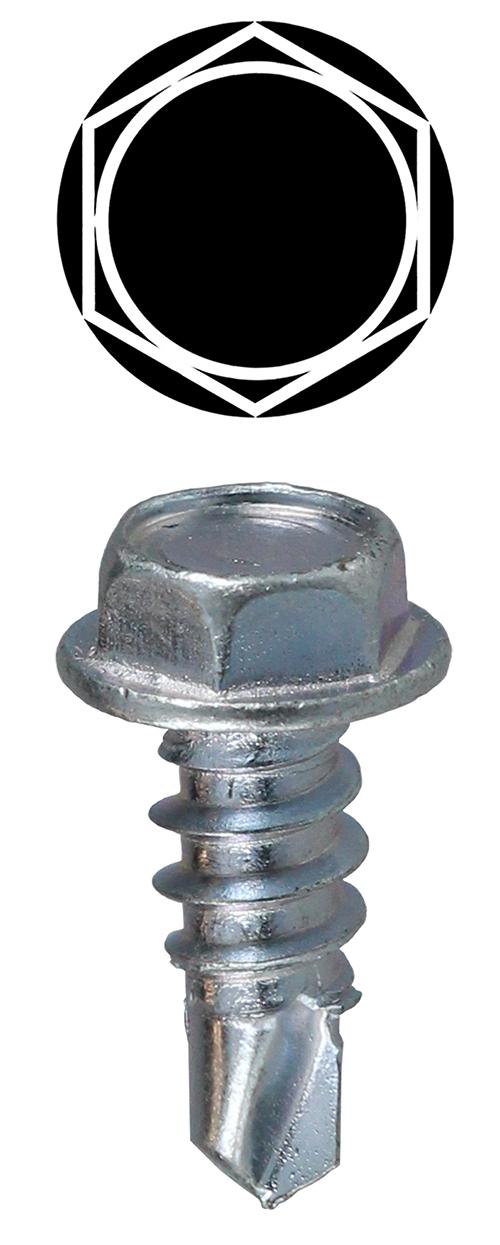

• Self Drilling Screws are manufactured from cold heading steel and feature a #2 drill point
• The unique tip design allows them to drill, tap and fasten metal to metal objects in one operation, without the need to pre drill
• This creates the optimal drill performance and thread forming experience
• The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications

DIMENSIONS

LENGTH

0.75 in

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

SPECIFICATIONS

Diameter - Thread Size

#8

Drive Type

Hex

Hardness

HRC 32 to 40

Head Size

0.110 to 0.096 in H x 0.348 to 0.322 in Dia

Head Type

Hex Washer

Material

Carbon Steel

Measurement System

Imperial

Overall Length

3/4 in

Point Size

#2

Point Type

Drill

Series

TEKHW

Thread Type

BSD
