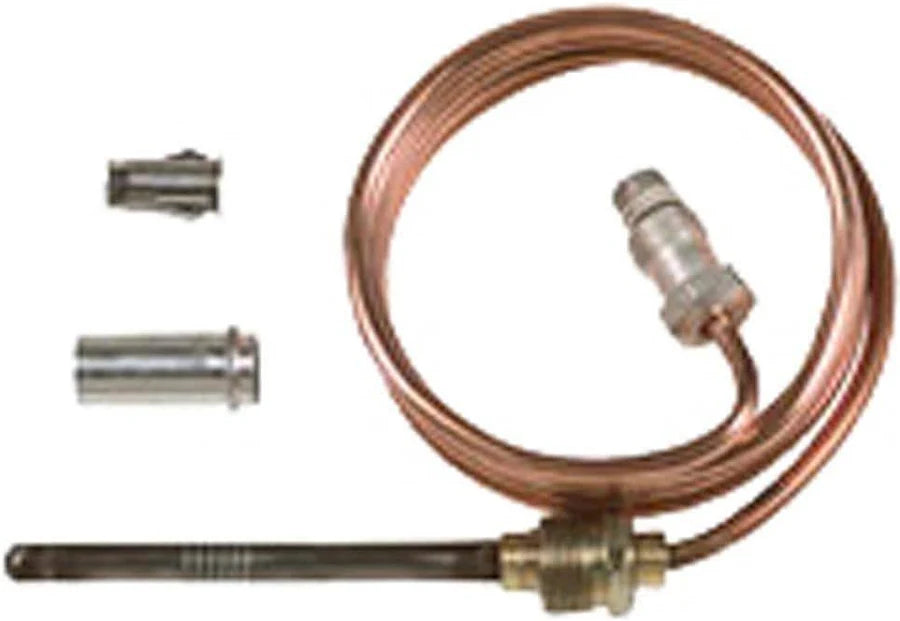

THERMOCOUPLE 24"

Technical Description

Product Type: Thermocouple (Pilot Safety Sensor)
Length: 24 inches
Application: Gas water heaters, furnaces, and boilers with standing pilot systems.

Function

A 24-inch thermocouple is a safety device used in gas-fired appliances to detect the presence of a pilot flame. When heated by the pilot flame, the thermocouple generates a small electrical signal (millivolts) that keeps the gas control valve open. If the pilot flame goes out, the signal stops and the gas valve automatically shuts off, preventing gas leaks.

Key Specifications

• Lead Length: 24 in
• Voltage Output: ~25–35 millivolts
• Connector: Standard 11/32 in threaded connection
• Material: Copper tubing with heat-resistant sensor tip
• Compatibility: Most 30 mV gas control valves
• Mounting Options: Includes adapters for push-in, clamp-in, or screw-in pilot burners.

Typical Applications

• Residential gas water heaters
• Gas furnaces
• Gas boilers
• Gas room heaters and fireplaces

Key Features

• Universal Fit: Compatible with many major gas control valves including Honeywell, White-Rodgers, and Robertshaw.
• Pilot Flame Safety: Automatically shuts off gas supply if the pilot flame fails.
• Durable Construction: Copper tubing and stainless sensor element for long service life.
• Easy Installation: Standard threaded connector and included mounting adapters
