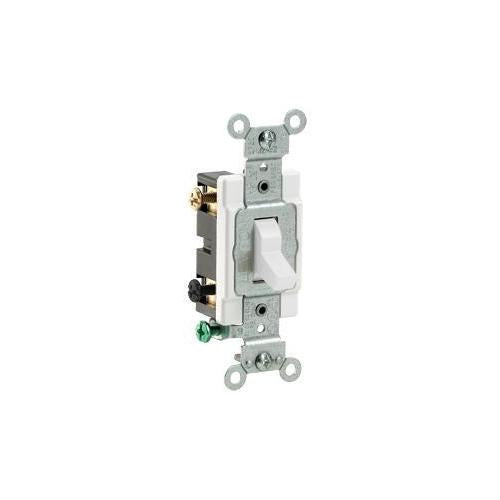

Toggle Switch - White - Thermoplastic
Toggle Switch - White - Thermoplastic
CS220-2W
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WIDTH |
1.31 in |
|---|---|
|
HEIGHT |
46 in |
|
WEIGHT |
0.15 lb |
PRODUCT OVERVIEW
Leviton® commercial specification grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton® offers a large selection of 15 and 20 A commercial switches, available in a wide variety of colors, wiring options and other features.
SPECIFICATIONS
|
Actuator |
Toggle |
|---|---|
|
Amperage Rating |
20 A |
|
Contact Rating |
1 hp at 120 V AC, 2 hp at 240 V AC |
|
Dimensions |
46 in H x 1.31 in W x 0.92 in D |
|
Enclosure |
NEMA WD-1/WD-6 |
|
Environmental Conditions |
-40 to 120 deg C Operating Temperature |
|
Material |
Thermoplastic |
|
Mounting |
Surface |
|
Number of Poles |
2 |
|
Power Rating |
800 W, 1000 VA |
|
Terminal Type |
Side Wire |
|
Voltage Rating |
120/277 V AC |

$16.24
