Item Status:
Discontinued
Availability is limited to remaining stock.

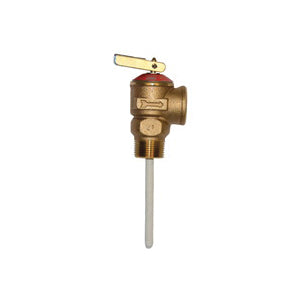

TP1100A - 3/4" Temperature and Pressure Relief Valve
TP1100A - 3/4" Temperature and Pressure Relief Valve
TP1100AE-3C-150C
Regular price
$66.22
Sale price
$66.22
Regular price
$86.00
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Thermal element protected
• 2.1 in shank
DIMENSIONS
DIMENSIONS
|
HEIGHT |
6.5 in |
|---|
WARRANTY
WARRANTY
1 Year
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
The TP1100A Zurn® Wilkins Residential Temperature and Pressure Relief Valve is commonly used on residential water heaters.
SPECIFICATIONS
|
Body Material |
Cast Brass/Bronze |
|---|---|
|
Dimensions |
6-1/2 in H |
|
End Style |
MNPT x FNPT |
|
Media |
Water |
|
Nominal Size |
3/4 in |
|
Pressure Rating |
150 psi |
|
Probe Length |
3 in |
|
Series |
TP1100A |
|
Temperature Rating |
210 deg F |
|
Top to Inlet Center |
1-5/8 in |
|
Trim Material |
Stainless Steel Spring |

TP1100A - 3/4" Temperature and Pressure Relief Valve
$66.22
