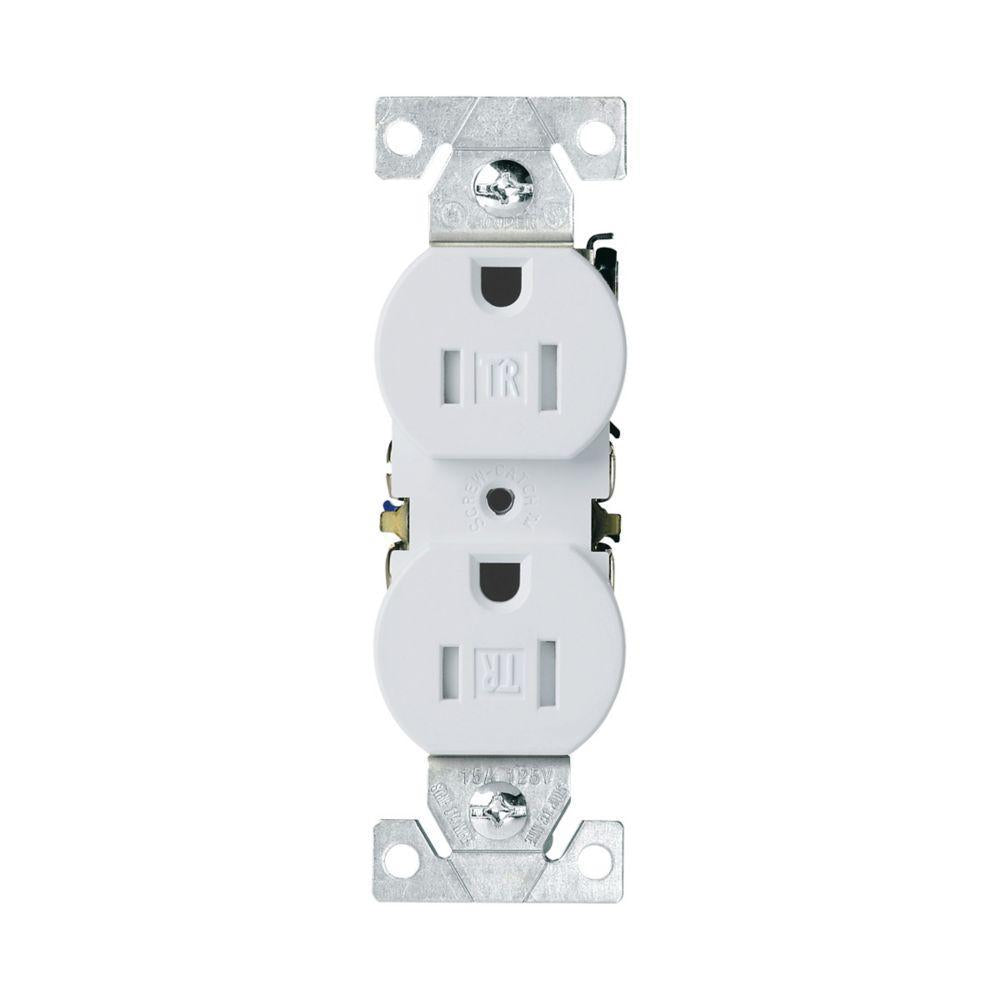

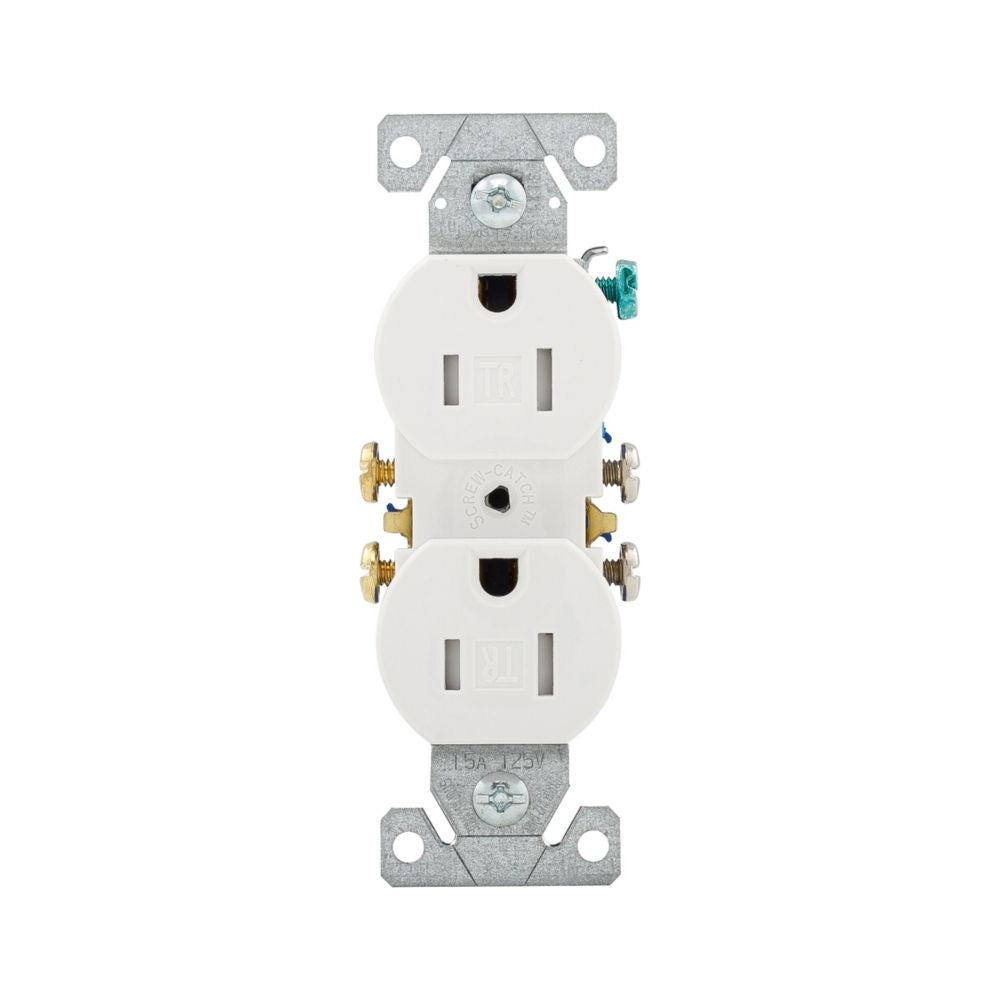

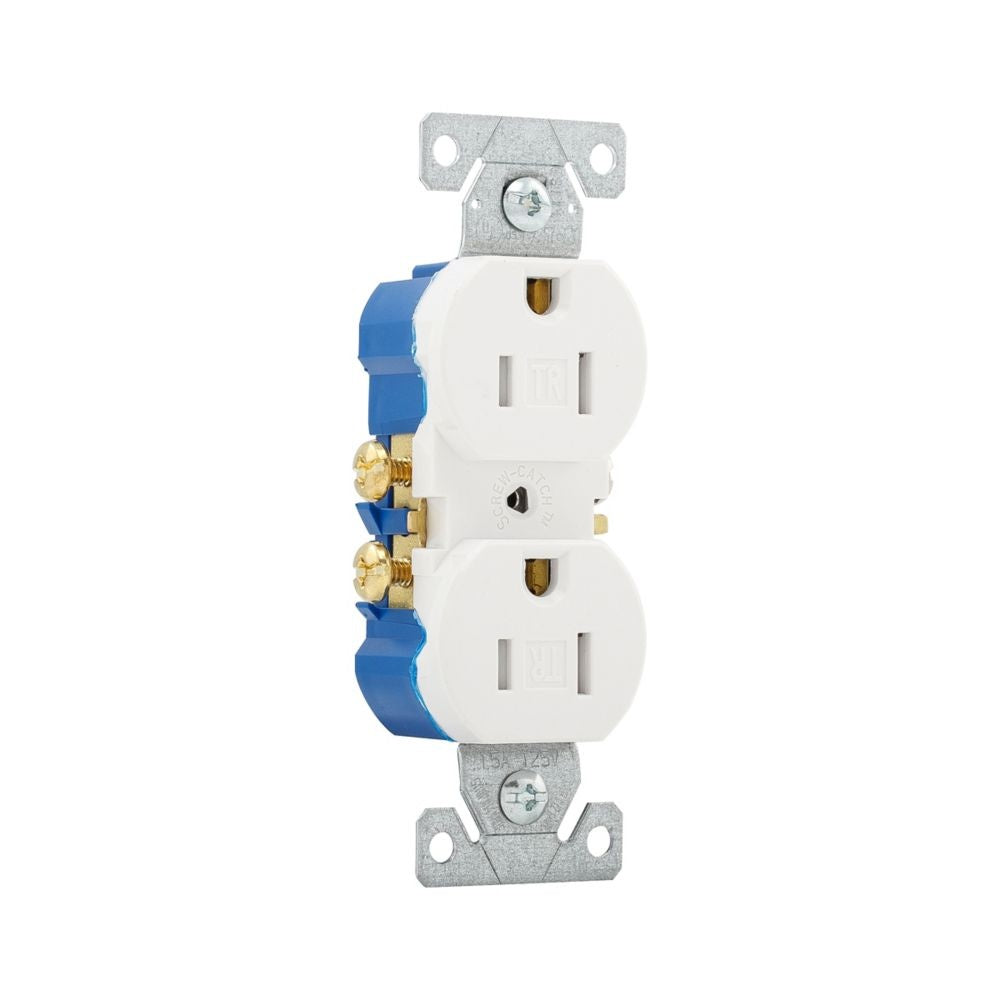

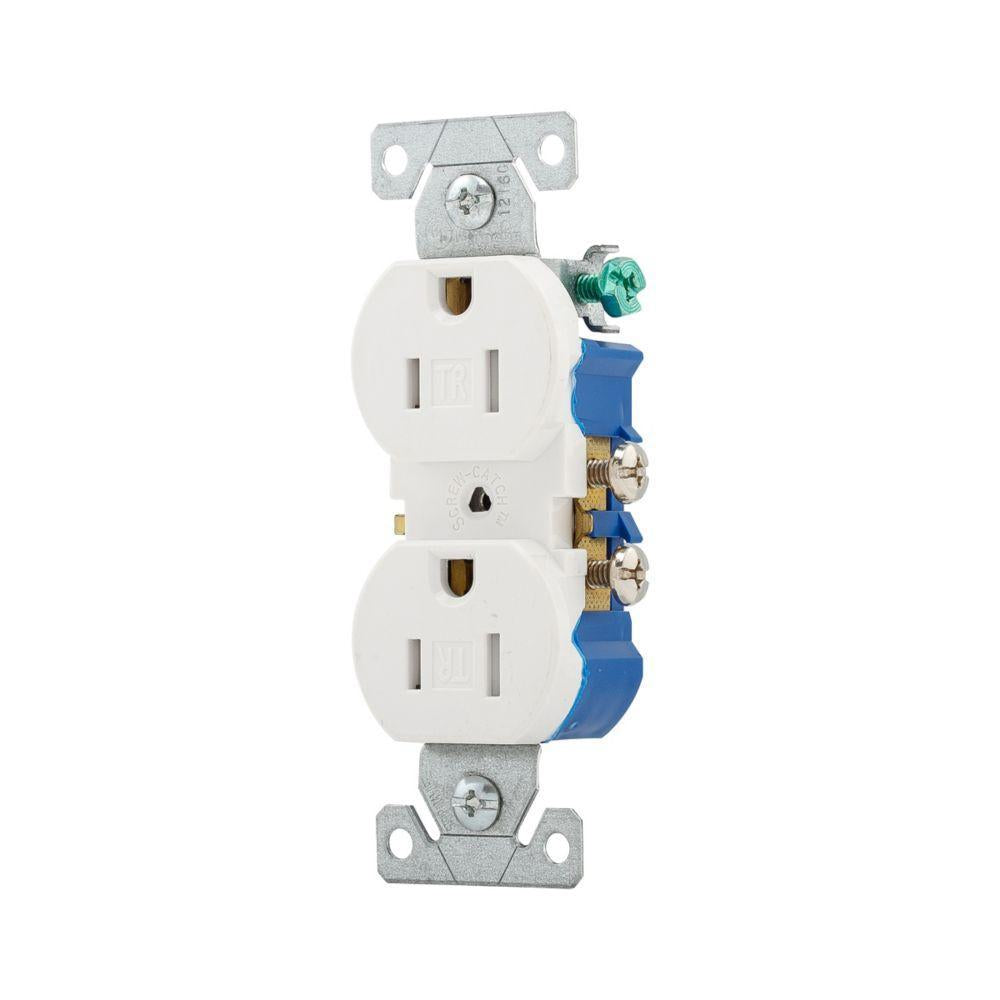

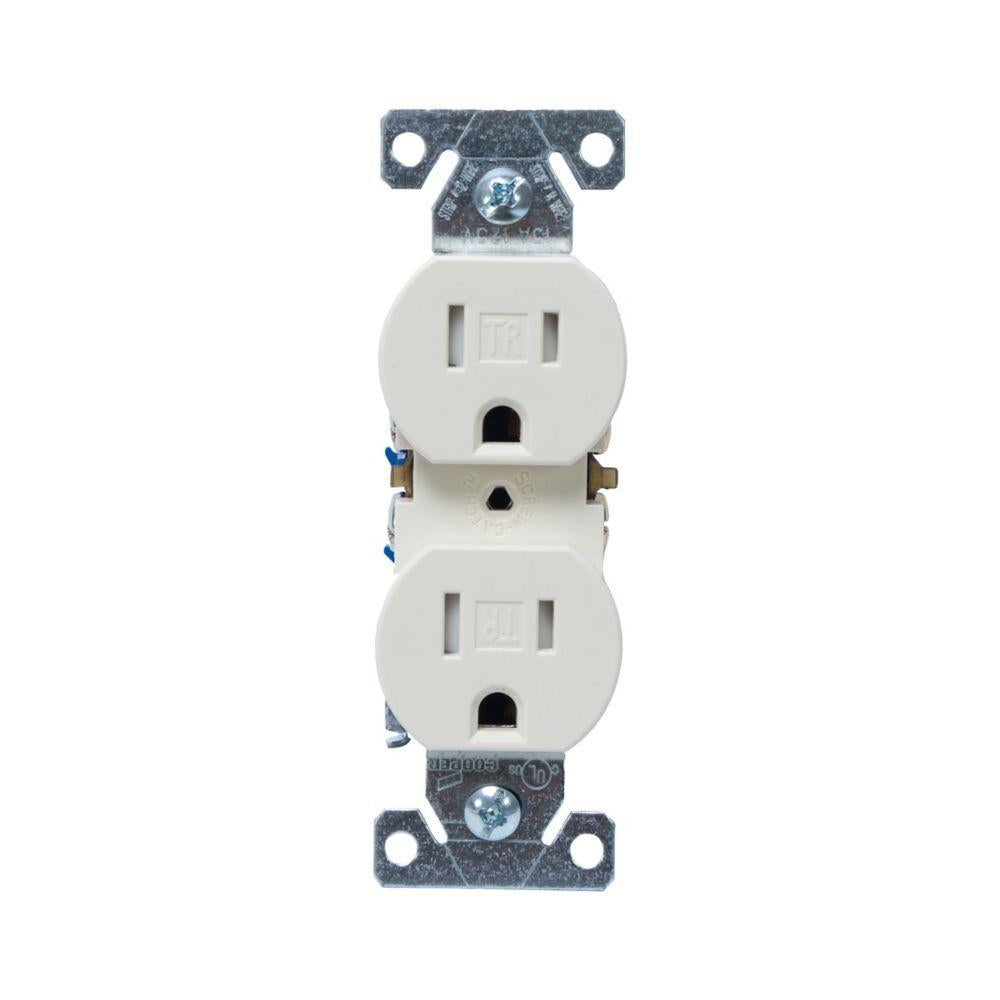

TR270 - Tamper-Resistant Grounding Straight Blade Receptacle

TR270 - Tamper-Resistant Grounding Straight Blade Receptacle

TR270W

$1.63
$1.63 $1.03
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Tamper resistant versions provide compliance with 2011 NEC article 406.12 that states that all receptacles installed in dwelling units must be tamper resistant
• Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations
• Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
• Patented built-in wire looper for pre-looping
• High impact resistant thermoplastic face and back body eliminates breakage
• Double wipe ground contacts ensure long-term ground retention
• Easy access split circuit break off tab
• Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
• Terminal screws are backed out and ready to wiring
• Side wire terminals accept up to 10 AWG solid wire

DIMENSIONS

WIDTH

1.3 in

HEIGHT

4.19 in

WEIGHT

0.01 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

Eaton’s straight blade receptacles cover the full range of residential, hospital, industrial, construction, and commercial grades to meet any application. Choose from decorator or traditional styles, multiple colors, tamper resistant solutions and weather resistant products for exterior installations. Eaton also offers special solutions for complex environments including corrosion-resistant, severe-duty insulated and watertight products.

SPECIFICATIONS

Amperage Rating

15 A

Dimensions

4.193 in H x 1.3 in W x 1.015 in D

Grade

Residential/Standard

Material

Thermoplastic

NEMA Rating

NEMA 5-15R

Number of Poles

2

Number of Wires

3

Series

TR270

Temperature Rating

-4 to 158 deg F

Terminal Type

Screw

Type

Duplex Tamper-Resistant Grounding

Voltage Rating

125 V AC
