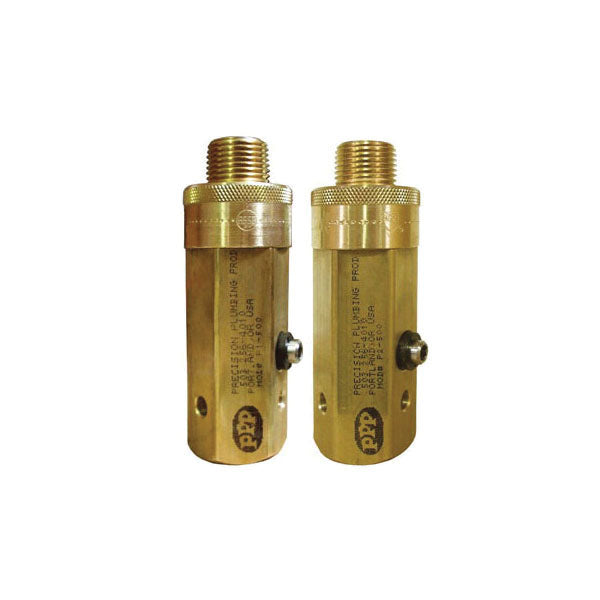

Trap Primer Valve - 1/2"

Trap Primer Valve - 1/2"

P2-500

$162.48
$162.48 $103.03
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• A pressure drop of 10 psig is required to activate the priming valve
• The valves operating range is 20 to 80 psig
• Adjustable to line pressure
• Piston operated, contains no springs or diaphragms
• Easily adjusted to high or low pressures
• Constructed of 360 brass, EPDM E70 O-rings, Dow Silicone, stainless steel mesh screen, stainless steel adjustment screw
• Model P-2 will prime 1 to 2 floor drains using the PPP Patented distribution system

DIMENSIONS

WIDTH

1.13 in

HEIGHT

4.38 in

WEIGHT

1.25 lb

DOCUMENTS & RESOURCES

Specification Sheet
User Manual

PRODUCT OVERVIEW

The Model P-2 Trap Primer Valve is a precision device designed to deliver potable water to floor drains.

SPECIFICATIONS

Connection

FNPT x MNPT

Dimensions

1-1/8 in W x 4-3/8 in H

Domestic/Import

Domestic

Pipe Size

1/2 in
