EATON

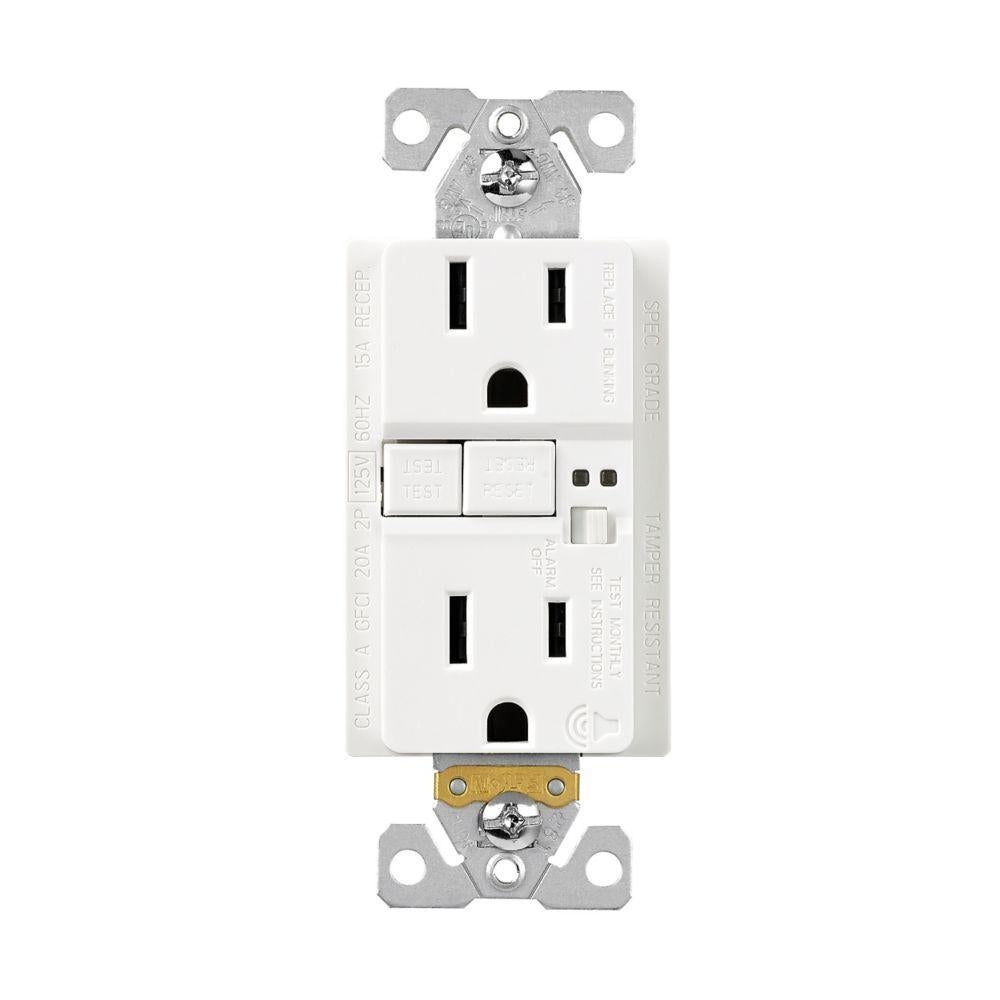

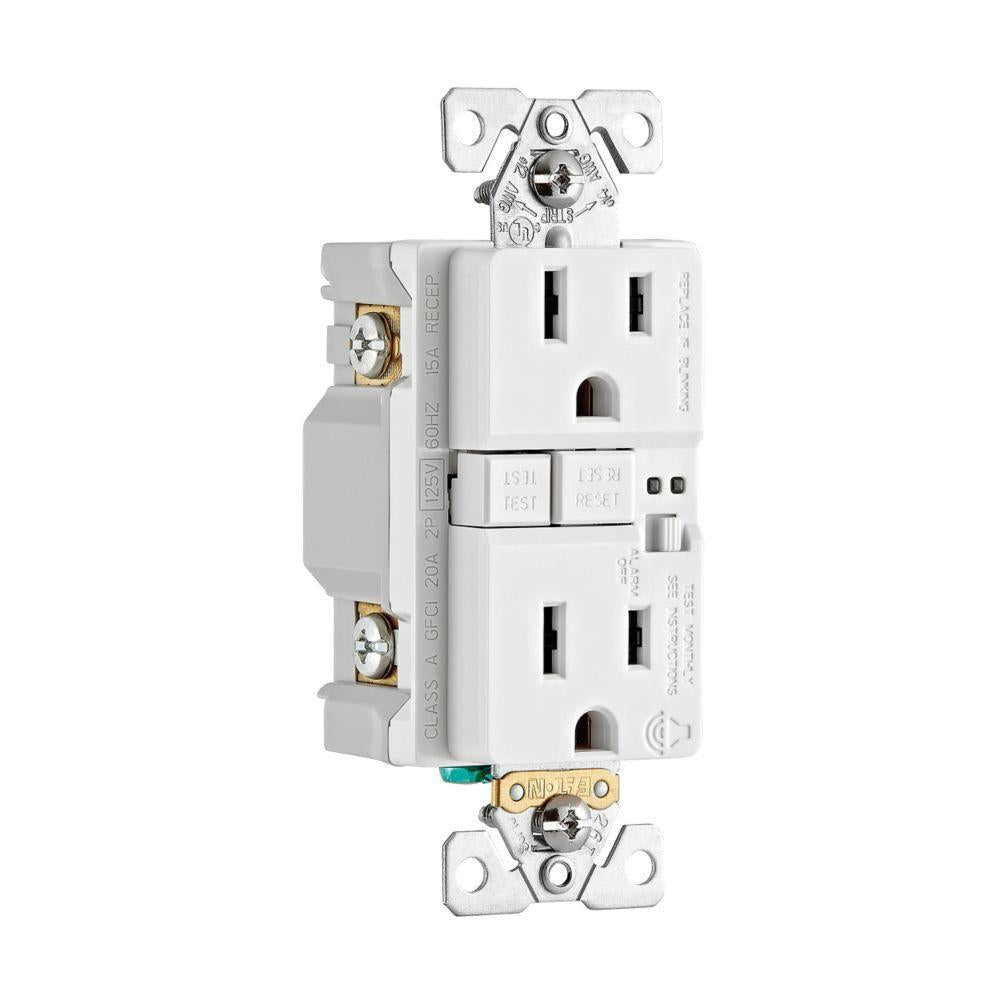

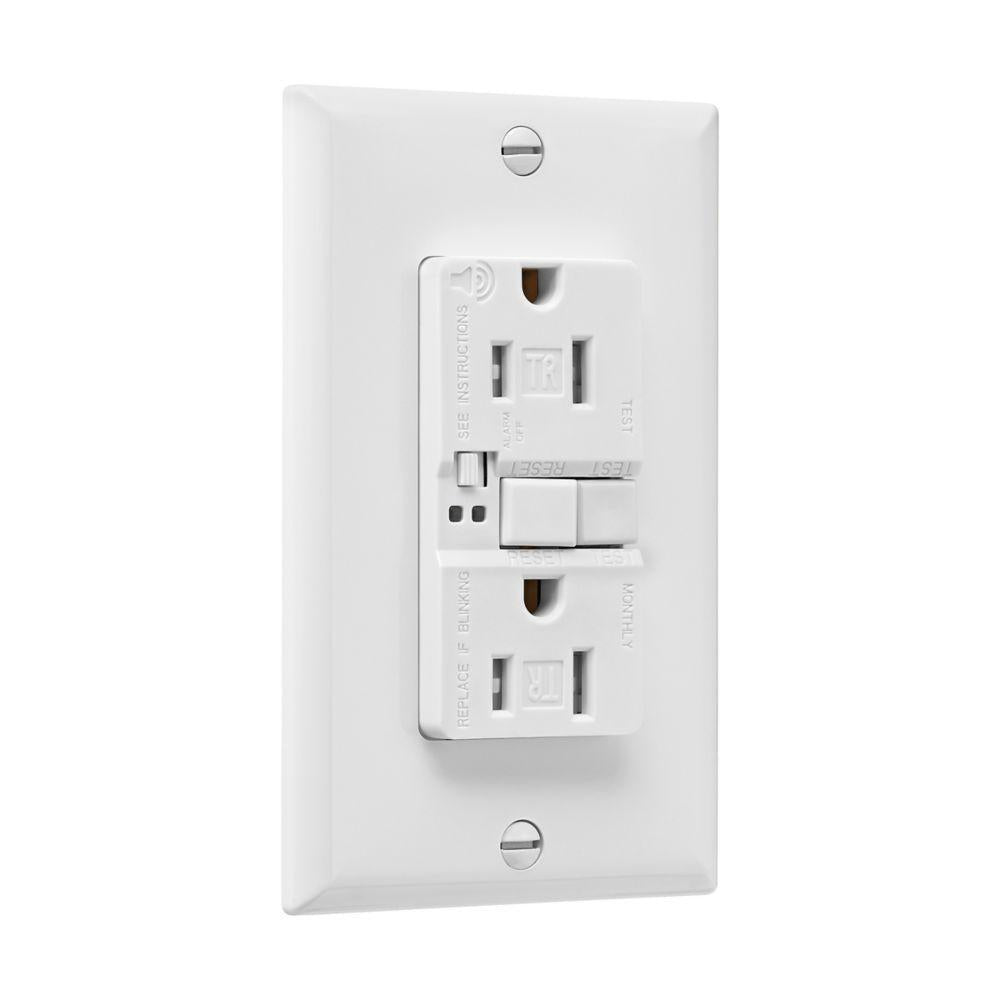

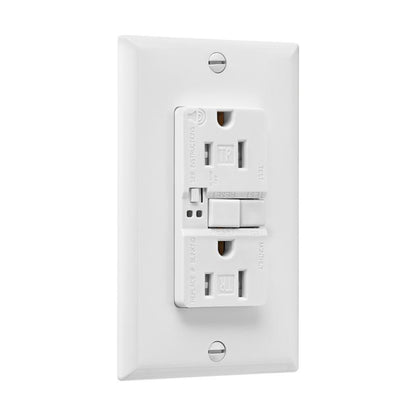

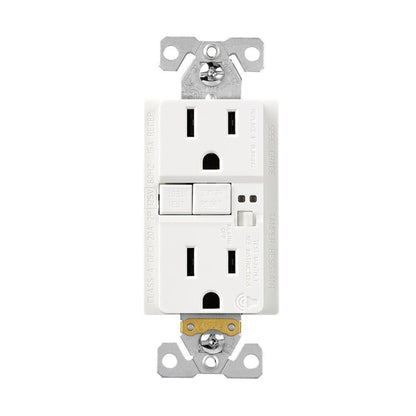

Trsgfa - GFCI Receptacle with Audible Alarm - White

Trsgfa - GFCI Receptacle with Audible Alarm - White

TRSGFA15W

$21.65
$21.65 $15.14
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Performs periodic self tests to ensure integrity of GFCI protection
• Visual trip indicator light gives quick notification of a tripped or "end of life" condition
• Audible alarm notifies user of tripped GFCI, alarm can be turned off if required
• Meets and exceeds 10 kA short circuit testing and UL 943 safety standards
• Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
• Ground termination with back wire clamp provides secure wiring and reduces installation time
• Tamper-resistant shutters help prevent foreign objects from being inserted
• Line side terminals are backed out and staked for fast installation
• Horizontal test/reset button alignment provides larger unobstructed area
• Test and reset buttons are color matched to provide superior aesthetics

DIMENSIONS

HEIGHT

4.19 in

WEIGHT

0.41 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Tested to the highest standards to provide dependable, state-of-the-art protection suitable for residential, commercial, and industrial settings, Eaton's Ground Fault Circuit Interrupter (GFCI) receptacles are designed to recognize a ground fault in your wiring and immediately break the flow of electricity, thus protecting you from electrical shock. Additionally, they prevent resetting if, once tripped, the ground fault renders the device no longer functional. When combined with Eaton’s Arc Fault Circuit Interrupter (AFCI) technology, Eaton's GFCI receptacles provide fire and electrical safety in one device (AF/GF), and are also available in breakers.

SPECIFICATIONS

Amperage Rating

15 A

Dimensions

1.2 in D x 4.19 in H

Frequency Rating

60 Hz

Grade

Specification

Material

Brass/Polycarbonate

NEMA Rating

NEMA 5-15R

Number of Poles

2

Number of Wires

3

Series

TRSGFA

Temperature Rating

-31 to 150.8 deg F

Terminal Type

Back/Side Wire/Screw

Type

Duplex Grounding Self-Test Tamper-Resistant

Voltage Rating

125 V AC
