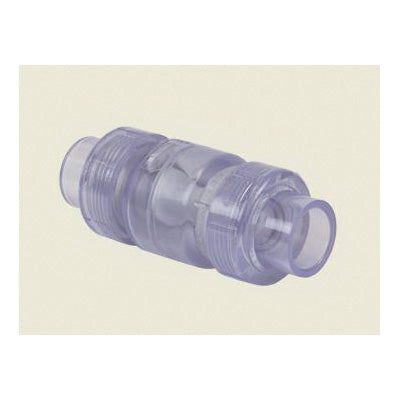

True Union - 2" Utility Swing Check Valve - PVC

True Union - 2" Utility Swing Check Valve - PVC

S1720C20



Regular price $64.28
Sale price $64.28 Regular price $50.42
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Chemical and corrosion resistant PVC white or high visibility PVC clear construction
• No metal parts on swing check - stainless steel spring on spring check
• True union style for easy in-line replacement of sealed unit
• Strong buttress threaded union nuts
• Engineered for maximum flow, quick response and positive shut-off
• Long life high grade EPDM seat with weighted disc
• Suitable for either horizontal or vertical installations and vacuum service
• Silicone free assembly
• Flow-Tested for Minimum Turbulence

DIMENSIONS

HEIGHT

4.25 in

WEIGHT

2.24 lb

WARRANTY

Limited Lifetime

PRODUCT OVERVIEW


Spears® True Union Utility Swing Check and spring assisted True Union Utility Spring Check Valves offer a compact, high performance check valve for Landscape and Irrigation, Pool and Spa, Aquaculture, OEM 1 and many general purpose applications. True Union design allows for easy in-line replacement of maintenance free sealed units. These valves feature long-life EPDM elastomer seats with weighted disc for full-flow with minimal restriction and positive shutoff. Spring assisted "Spring Check" model incorporates a positive-pressure spring to assist in valve closing without slamming. Produced from PVC White or PVC Clear material with Socket, Threaded or SR Threaded end connectors in IPS Sizes 1/2 in through 4 in.


SPECIFICATIONS

Body Material

PVC

Dimensions

4-1/4 in H

Domestic/Import

Domestic

End Style

Socket Welded

Inlet to Outlet Length

8-5/8 in

Low Lead Compliance

No

Media

Water

Nominal Size

2 in

Pressure Rating

150/75 psi

Series

True Union

Temperature Rating

140 deg F

Trim Material

EPDM
