SPEARS

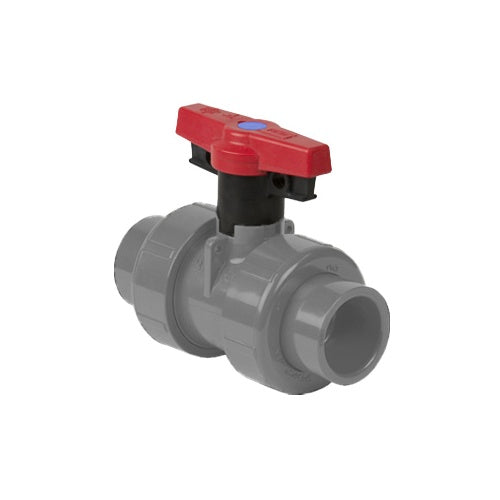

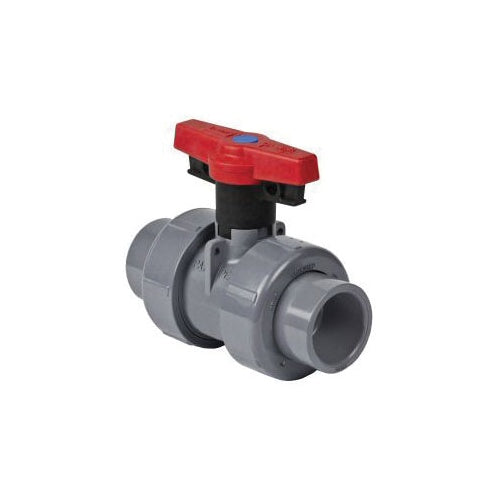

True Union 2000 - 2-1/2" Industrial Ball Valve - CPVC

True Union 2000 - 2-1/2" Industrial Ball Valve - CPVC

1822-025C



Regular price $559.79
Sale price $559.79 Regular price $605.17
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Chemical and corrosion resistant PVC or CPVC construction
• Strong, buttress thread union nuts
• Spears® Safe-T-Blocked® seal carrier
• Uses standard O-Ring seat
• Fully serviceable, replaceable components
• Assembled with silicone-free, water soluble lubricant
• Suitable for either horizontal or vertical installations and vacuum service
• Rated to 235psi at 73 deg F

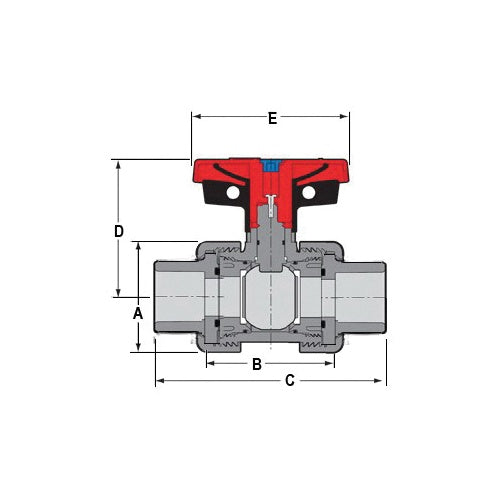

DIMENSIONS

WEIGHT

8.55 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


Spears® True Union 2000 Ball Valves, 3-Way Ball Valves and Ball Check Valves provide maximum versatility with fully interchangeable valve cartridges. Provides for easier system design modifications and upgrades in multiphase projects, or anywhere changes in valve types are desired. Simply exchange any True Union 2000 valve in-line using existing union nuts. Also mates with Spears® new SCH 80/XH Unions and Diaphragm Valves. All True Union 2000 valves feature a low profile, compact design for minimal space requirements. Available in PVC or CPVC with choice of EPDM or FKM O-ring seals and socket, threaded, flanged, spigot or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears® offers valve Retrofit Kits for easy in-line replacement of other valves and factory installed Actuation Packages. Assembled with silicone-free lubricant.


SPECIFICATIONS

Actuator Type

T-Handle

Ball Material

CPVC

Body Material

CPVC

Domestic/Import

Domestic

End Style

Socket

Inlet to Outlet Length

10-9/16 in

Nominal Size

2-1/2 in

Pressure Rating

235 psi

Series

True Union 2000

Softgoods Material

EPDM

Temperature Rating

200 deg F

Top to Inlet Center

5-7/8 in

Trim Material

CPVC Stem and PTFE Seat

Type

Industrial
