SPEARS

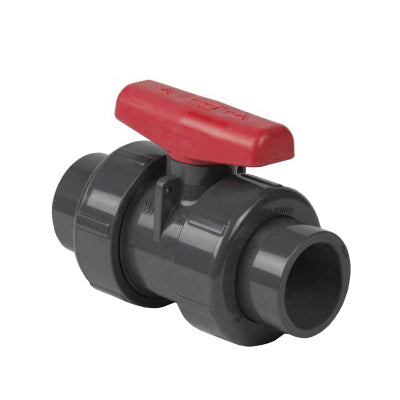

True Union 2000 - 4" Regular Style Ball Valve - PVC - Socket

True Union 2000 - 4" Regular Style Ball Valve - PVC - Socket

2322-040

$427.41
$427.41 $237.45
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Chemical and corrosion resistant PVC or CPVC construction
• SCH 80/XH full bore design
• Strong, buttress thread union nuts
• Fully Serviceable, replaceable Components
• Spears® Safe-T-Blocked® seal Carrier
• Self adjusting PTFE Floating seat Design
• High impact polypropylene handle
• Suitable for vacuum service
• EPDM valves NSF® certified for potable water use
• Assembled with silicone-free, water soluble lubricant

DIMENSIONS

WEIGHT

18.46 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

This versatile, quarter-turn shut-off valve is well suited for industrial and chemical processing applications. Available in IPS Sizes 1/2 to 4 in with socket, threaded or flanged end connectors. 6 in Ventured valve (4 in valve with 4 x 6 adapter) available with either socket or flanged end connection. Also available with metric 20mm - 110mm or 1/2 to 4 in BSP threaded end connectors.

SPECIFICATIONS

Actuator Type

T-Handle

Ball Material

PVC

Body Material

PVC

Domestic/Import

Domestic

End Style

Socket

Inlet to Outlet Length

13-3/16 in

Nominal Size

4 in

Pressure Rating

150 psi

Series

True Union 2000

Softgoods Material

EPDM

Temperature Rating

140 deg F

Top to Inlet Center

5-19/32 in

Trim Material

PVC Stem and PTFE Seat

Type

Regular Style
