EATON

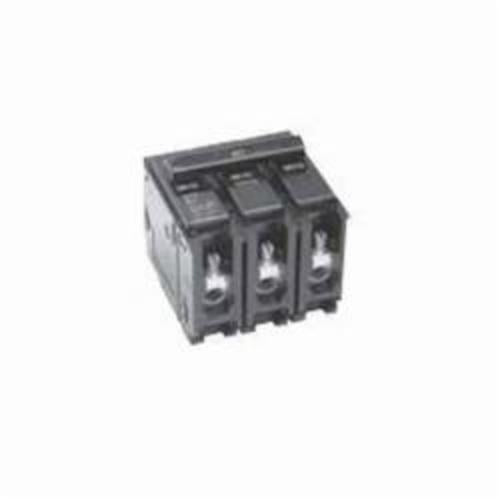

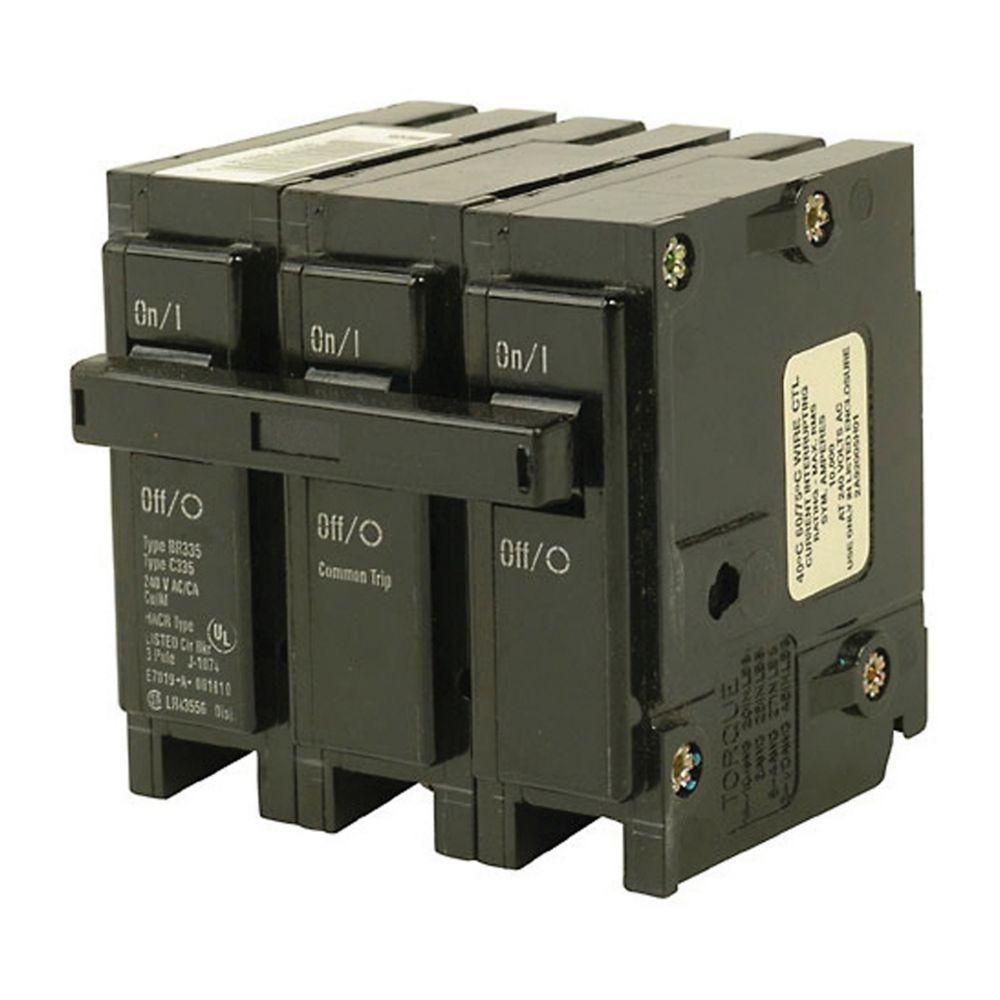

Type Br Circuit Breaker - 3 Poles

Type Br Circuit Breaker - 3 Poles

BR3100

$178.02
$178.02 $0.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Common trip requires three 1 in spaces
• All BR circuit breakers have rejection tab feature
• Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
• For 3-pole circuit breakers carry listing for HACR application

DIMENSIONS

LENGTH

3 in

WIDTH

3 in

HEIGHT

3 in

WEIGHT

1.1 lb

WARRANTY

10 years

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

SPECIFICATIONS

Amperage Rating

100 A

Dimensions

3 in L x 3 in W x 3 in H

Enclosure Type

NEMA 1/4X/3R

Interrupt Rating

10 kA

Mounting Type

Plug-On

Number of Poles

3

Phase

1

Temperature Rating

600 to 750 deg C

Trip Type

Thermal Magnetic

Type

Type BR

Voltage Rating

120/240 V AC

Wire Size

AWG 1.00
