GE

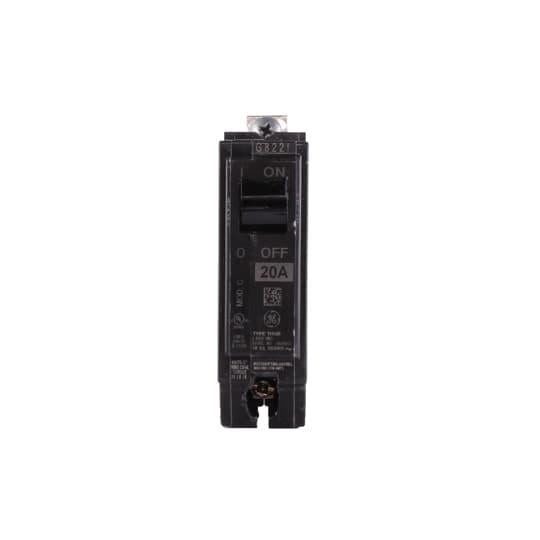

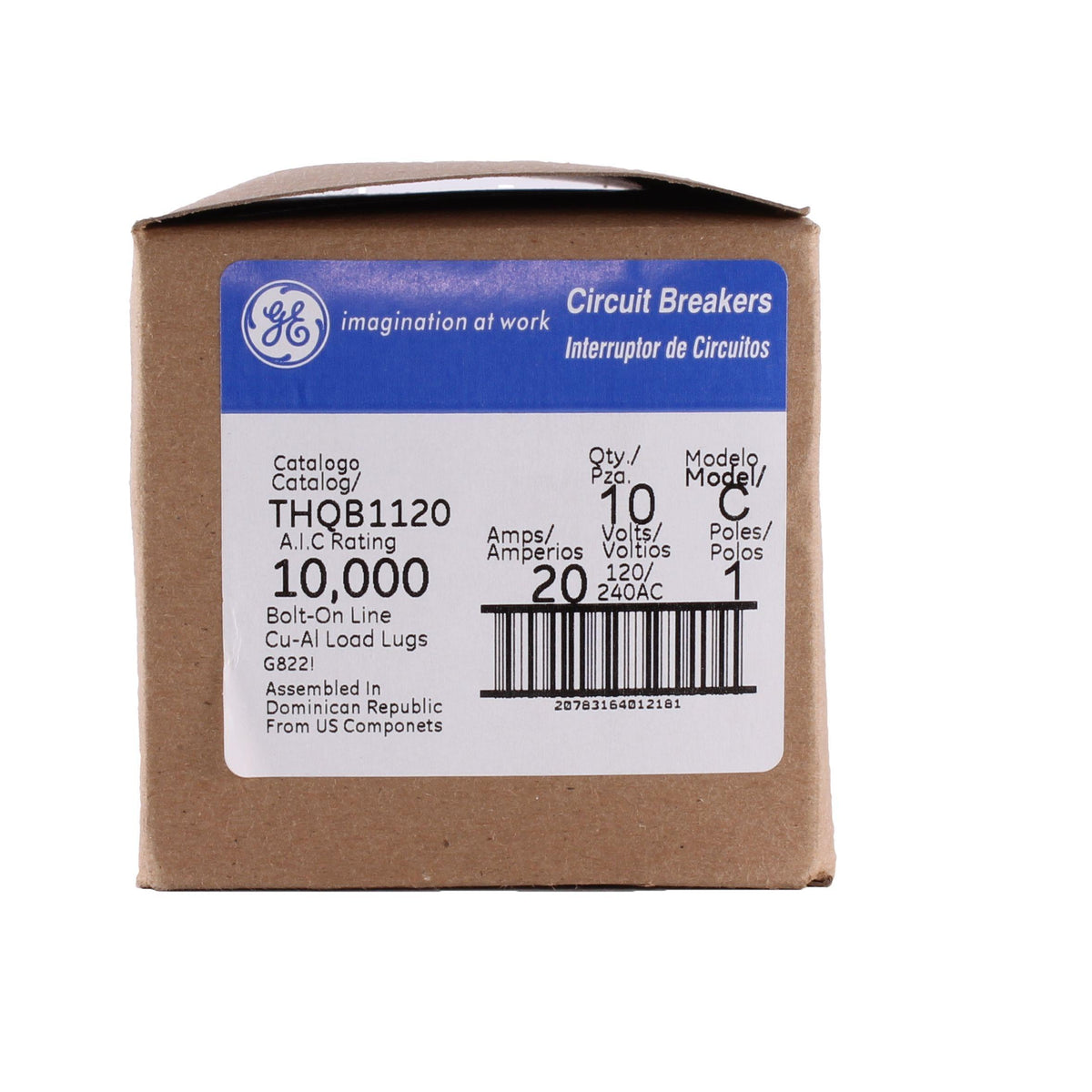

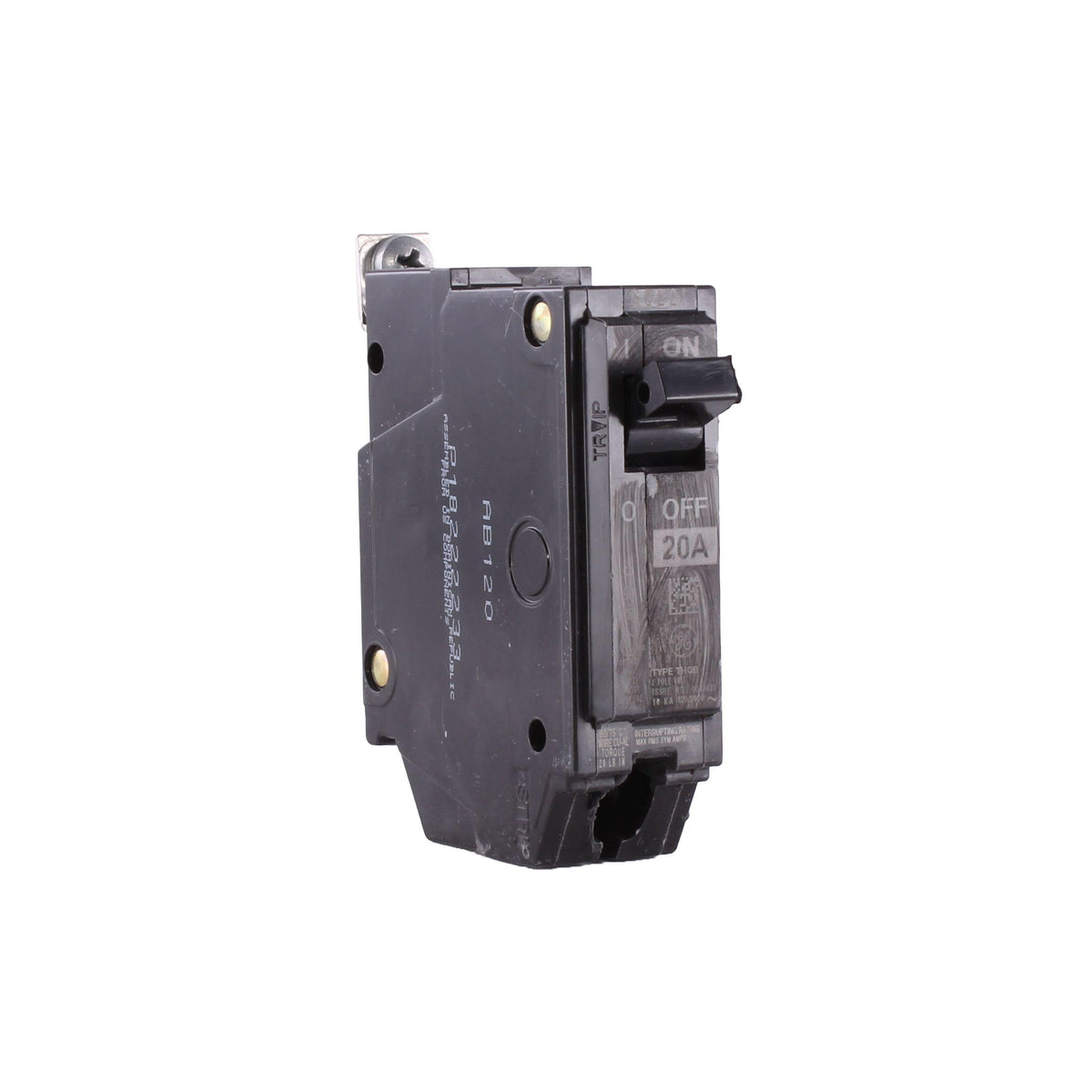

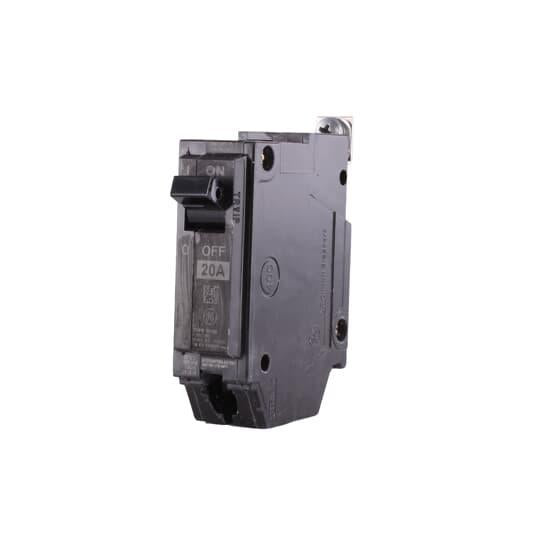

Type Thqb Molded Case Miniature Circuit Breaker - Bolted-On

Type Thqb Molded Case Miniature Circuit Breaker - Bolted-On

THQB1120

$16.00
$16.00 $8.89
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• The QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels
• All Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability
• Fixed instantaneous trip function
• Copper aluminum wire
• Internal common trip

DIMENSIONS

WIDTH

1 in

HEIGHT

3.28 in

WEIGHT

0.3 lb

DOCUMENTS & RESOURCES

Specification Sheet

PRODUCT OVERVIEW

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

SPECIFICATIONS

Amperage Rating

20 A

Dimensions

3.28 in H x 1 in W x 2.38 in D

Interrupt Rating

10 kA

Mounting Type

Bolted-On

Number of Poles

1

Phase

1

Temperature Rating

40 deg C

Trip Type

Thermal Magnetic

Type

Type THQB Molded Case

Voltage Rating

120/240 V AC

Wire Size

14 to 8 AWG, 12 to 8 AWG
