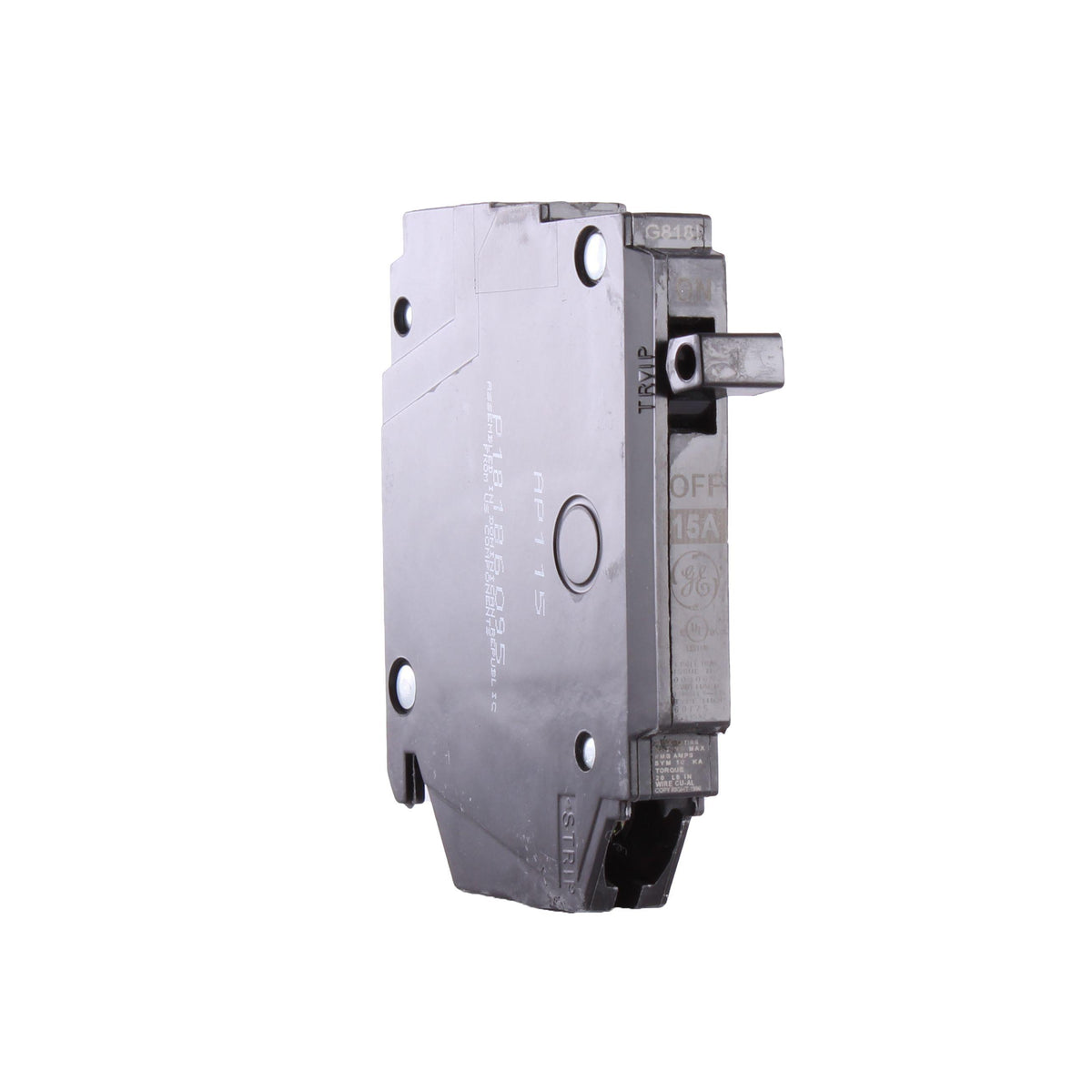

Type Thqp Molded Case Circuit Breaker - Plug-in - 1 Pole
Type Thqp Molded Case Circuit Breaker - Plug-in - 1 Pole
THQP115
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• LI - long time and instantaneous trip function
• R5 go schedule
• For heating, air conditioning and refrigeration
• Box lug load terminal
DIMENSIONS
DIMENSIONS
|
LENGTH |
2.38 in |
|---|---|
|
WIDTH |
1 in |
|
HEIGHT |
3.28 in |
|
WEIGHT |
0.19 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
THQP breakers are a smaller, smarter solution for today cost and quality conscious contractors and homeowners. Half the width of standard breakers, they allow use of smaller load centers and for maximum savings of space and money. GE is the only manufacturer that gives you this cost advantage without sacrificing flexibility. THQP breakers are one half the width of standard GE breakers but identical in design. They are available from 15 to 50 A and in 1 and 2-pole construction.
SPECIFICATIONS
|
Amperage Rating |
15 A |
|---|---|
|
Dimensions |
2-3/8 in L x 1 in W x 3-9/32 in H |
|
Frame |
Q-Line |
|
Interrupt Rating |
10 kA |
|
Mounting Type |
Plug-In |
|
Number of Poles |
1 |
|
Phase |
1 |
|
Trip Type |
Thermal Magnetic |
|
Type |
Type THQP |
|
Voltage Rating |
120/240 V AC |
|
Wire Size |
14 to 8 AWG, 12 to 8 AWG |
