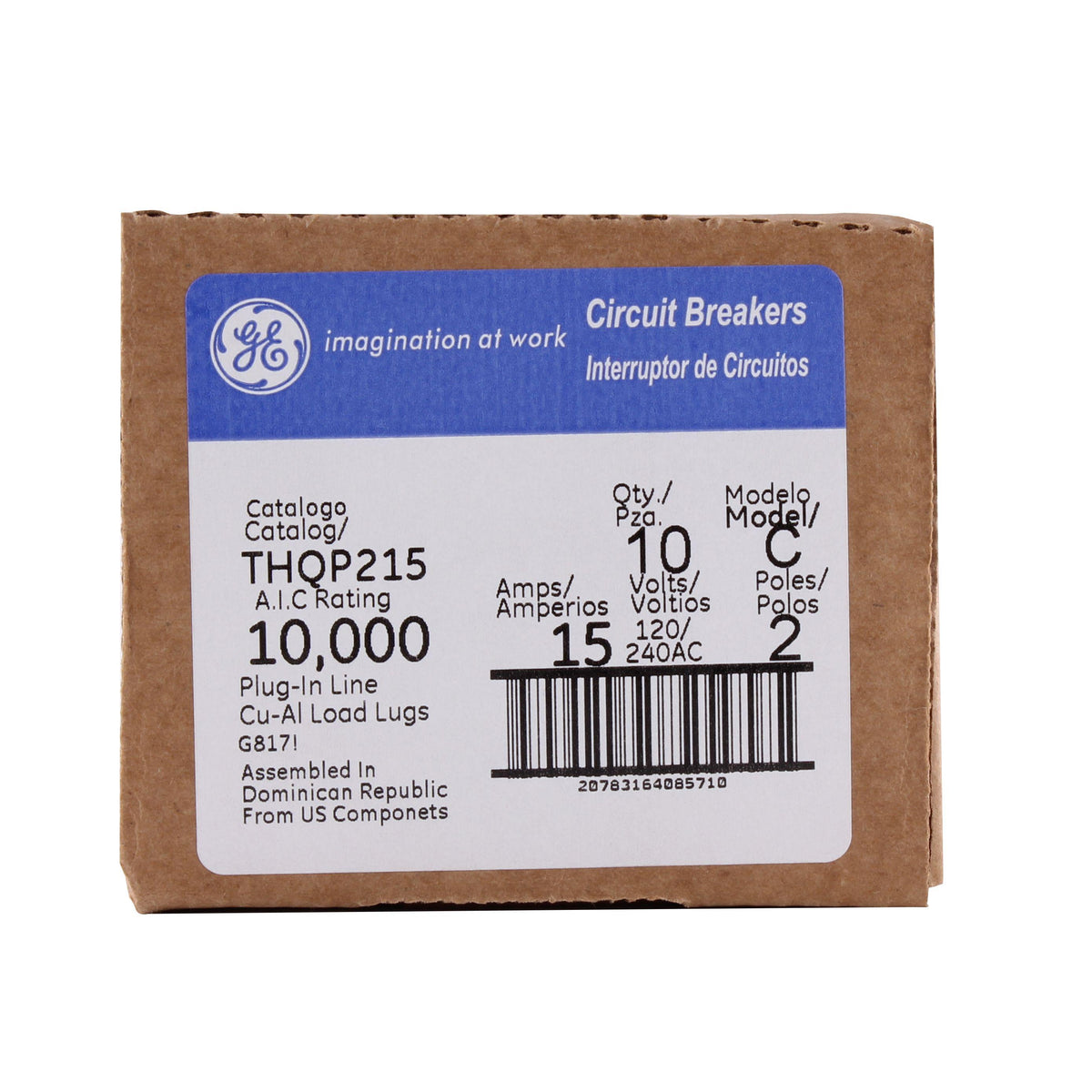

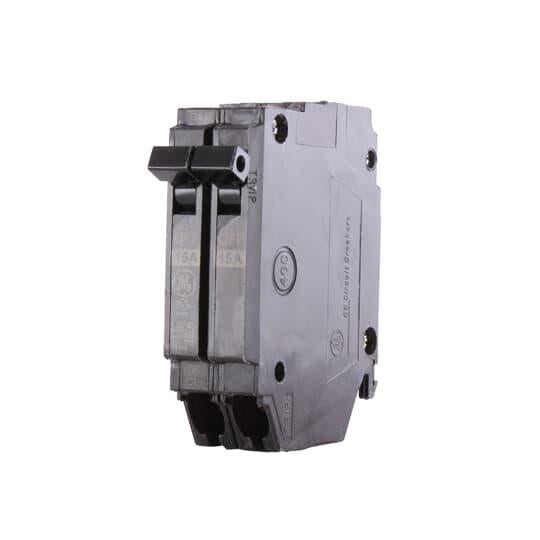

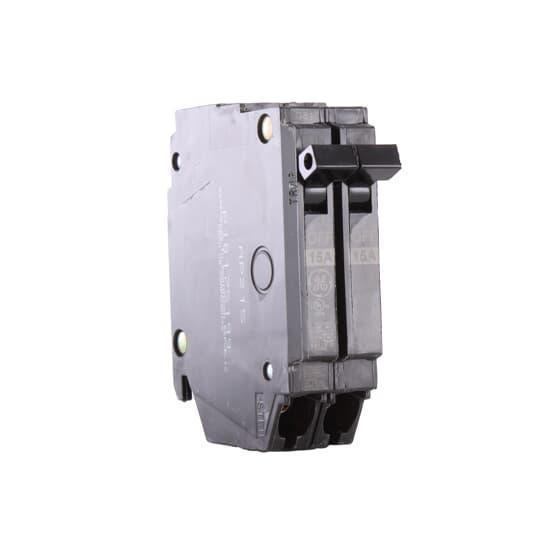

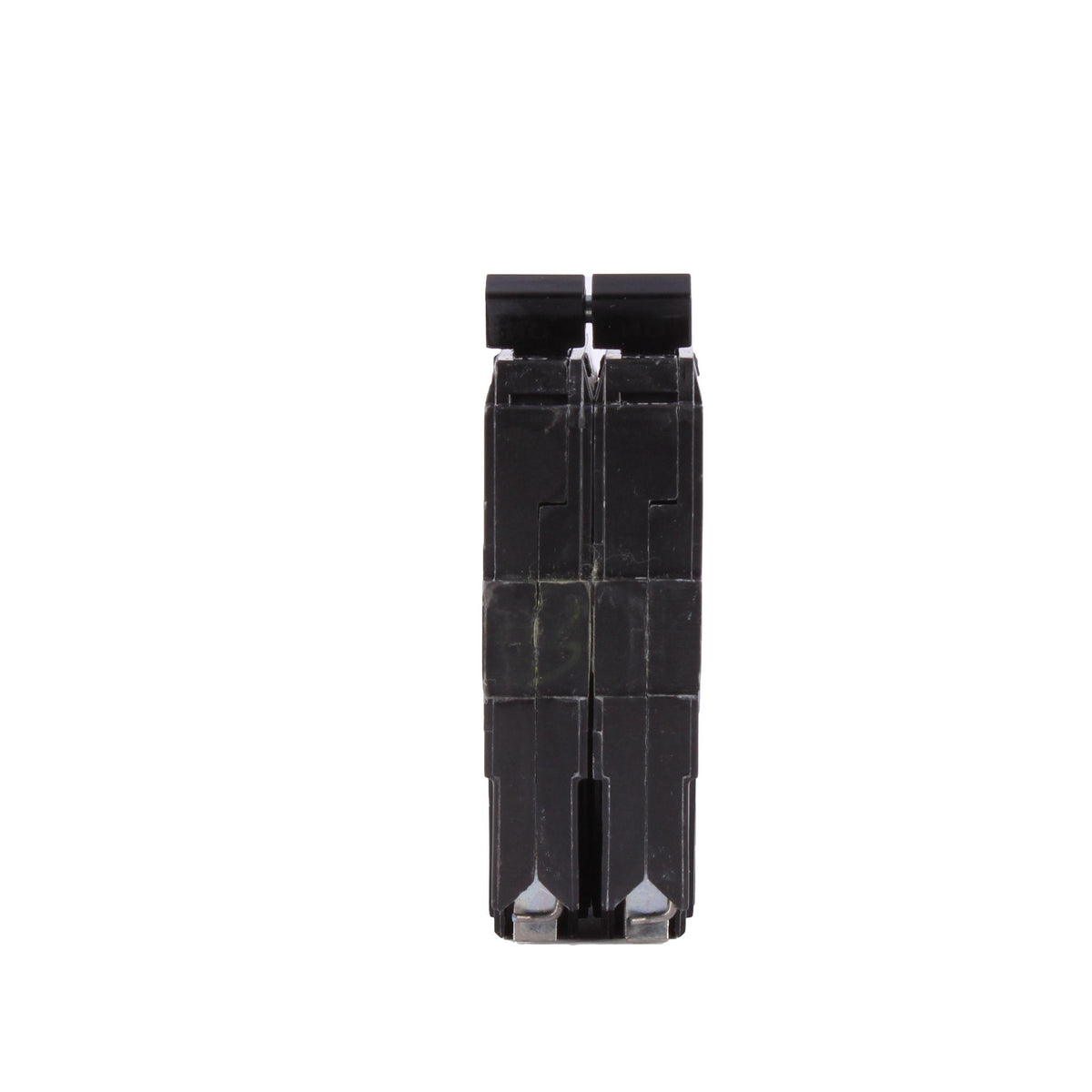

Type Thqp Molded Case Circuit Breaker - Plug-in - Load Lug
Type Thqp Molded Case Circuit Breaker - Plug-in - Load Lug
THQP215
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Standard continuous current rated
• R5 go schedule
• Quick-make, quick-break mechanism
• Suitable for reverse feed
• Incorporates internal common trip bar
• Feeder plug-in circuit breakers
DIMENSIONS
DIMENSIONS
|
WIDTH |
1 in |
|---|---|
|
HEIGHT |
3.28 in |
|
WEIGHT |
0.38 lb |
DOCUMENTS & RESOURCES
PRODUCT OVERVIEW
THQP breakers are a smaller, smarter solution for today cost and quality conscious contractors and homeowners. half the width of standard breakers, they allow use of smaller loadcenters and for maximum savings of space and money. GE is the only manufacturer that gives you this cost advantage without sacrificing flexibility. THQP breakers are one-half the width of standard GE breakers but identical in design. they are available from 15 to 50 A and in 1 and 2-pole construction.
SPECIFICATIONS
|
Amperage Rating |
15 A |
|---|---|
|
Connection Type |
Load Lug |
|
Dimensions |
3-9/32 in H x 1 in W x 2-3/8 in D |
|
Frame |
Q-Line |
|
Interrupt Rating |
10 kA |
|
Mounting Type |
Plug-In |
|
Number of Poles |
2 |
|
Phase |
1 |
|
Temperature Rating |
60/75 deg C |
|
Trip Type |
Thermal Magnetic |
|
Type |
Type THQP |
|
Voltage Rating |
120/240 V AC |
|
Wire Size |
14 to 8 AWG, 12 to 8 AWG |

$42.86
