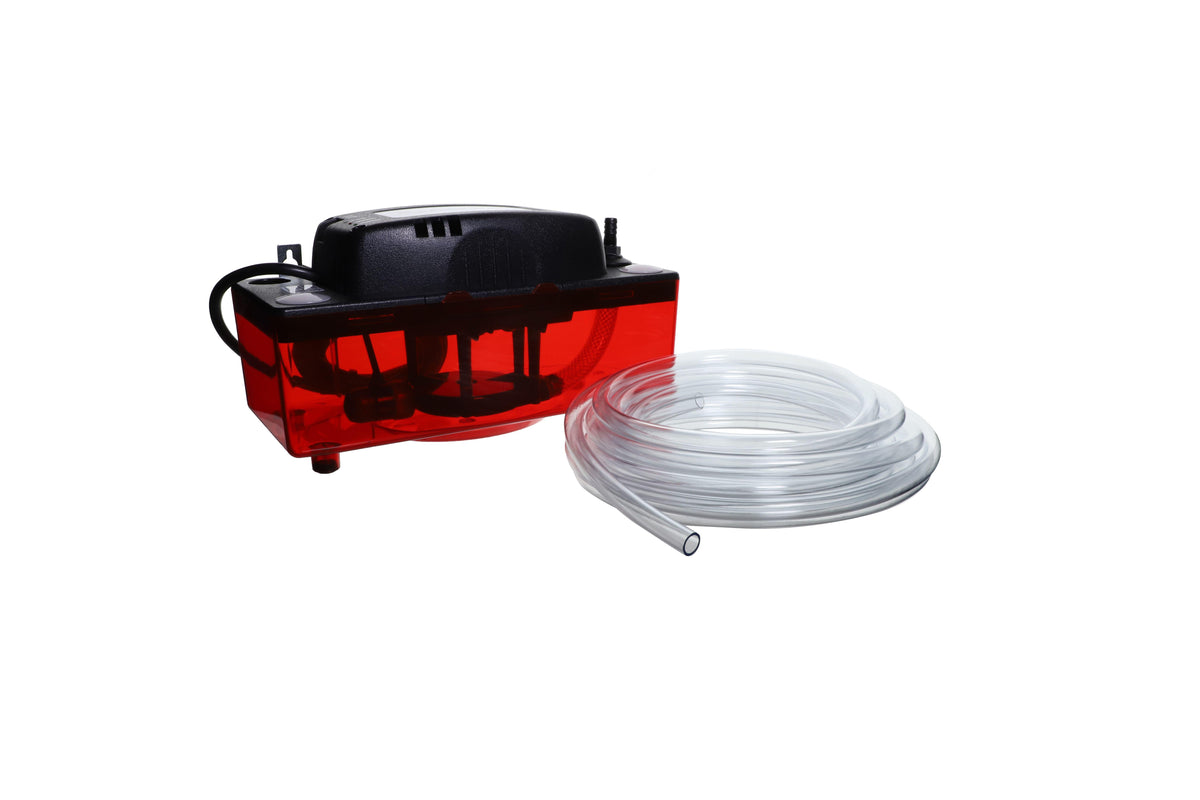

Ultra - Condensate Pump - 132 Gph
Ultra - Condensate Pump - 132 Gph
ULTRACP-22T-230
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Translucent Tank for Easy and Fast Inspection
• 22 ft maximum lift height
• LED Indicators Confirm Pump Status
DIMENSIONS
DIMENSIONS
|
WEIGHT |
6.12 lb |
|---|
PRODUCT OVERVIEW
The Asurity® ULTRACP-22T-230 Condensate Pump is a 230 volt pump with 22 ft of lift. It comes with innovative features such as a translucent tank for easy & fast inspection, vibration dampening feet & motor mounts, metal mounting tabs, four inlet holes (and 3 poly covers for the unused), LED indicators, float switch and duckbill-style check valve, and detailed installation instructions. Two 1/4in. quick connect terminals provide the installer fast and easy connections to the built-in overflow switch to shut-down the system and prevent flooding, an important safety feature. 20 ft of 3/8 in discharge tubing is included.
SPECIFICATIONS
|
Cord Type |
6 ft Power |
|---|---|
|
Electrical Ratings |
230 V AC, 60 Hz, 1 ph |
|
Flow Rate |
132 gph |
|
Inlet Size |
1/4 in |
|
Outlet Size |
3/8 in |
|
Power Rating |
1/30 hp |
|
Reservoir Capacity |
1/2 gal |
|
Series |
ULTRA |
|
Temperature Rating |
160 deg F |

$122.16
