GRUNDFOS

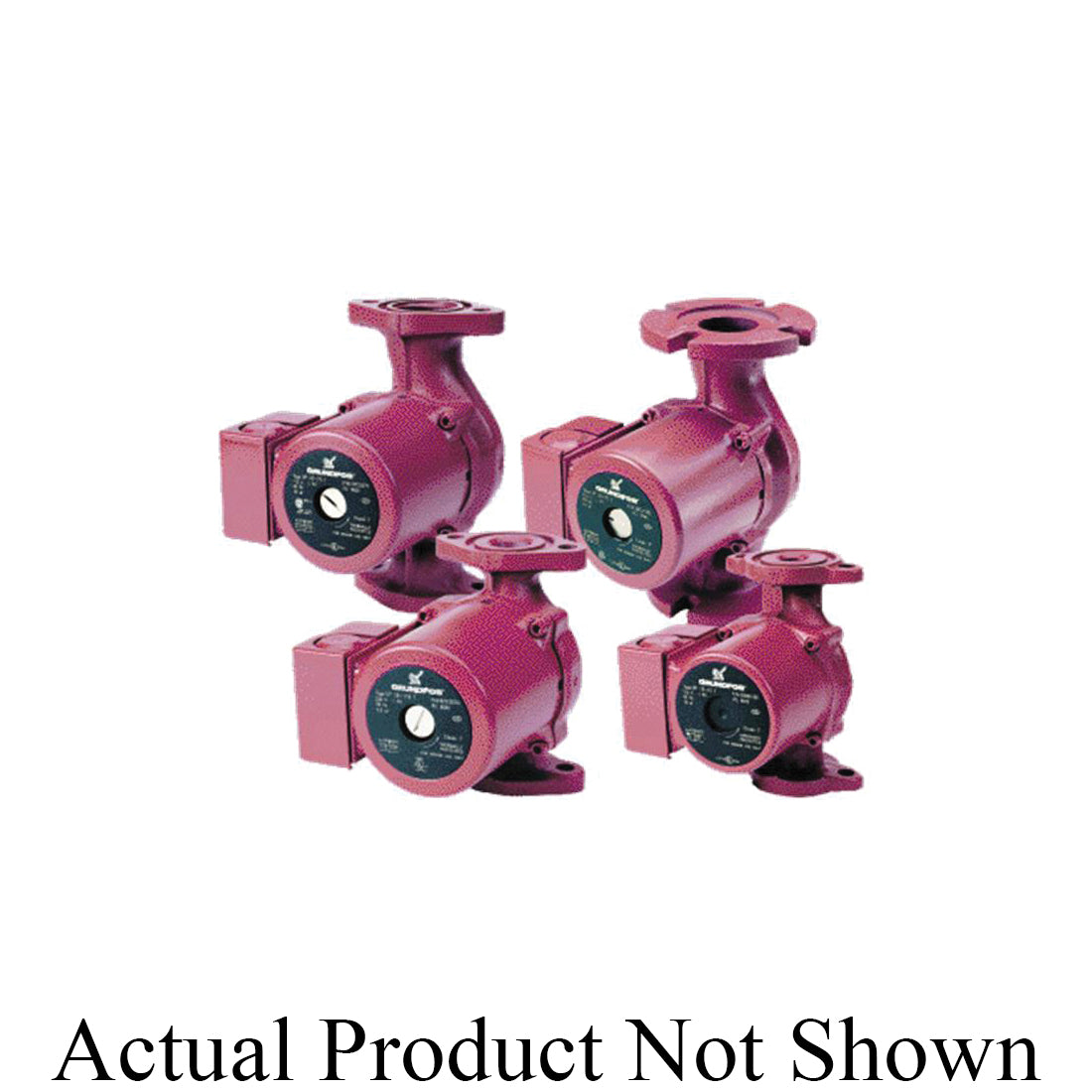

Up Series - Canned Rotor Circulator Pump - UP1542FCMR

Up Series - Canned Rotor Circulator Pump - UP1542FCMR

UP1542FCMR

$679.22
$679.22 $1,139.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Two water-temperature sensors (system supply and return (prewired, 8 ft each))
• One prewired 6 ft line cord
• One outdoor air-temperature sensor
• Stainless steel rotor can and bearing plate
• Impeller of corrosion-resistant material
• Non-electronically controlled circulator pumps for domestic building with speed control
• Mixing reset control
• Removable check valve
• Flange pipe connection
• Cast iron pump housing

DIMENSIONS

WIDTH

5.25 in

HEIGHT

6.5 in

WEIGHT

3.67 lb

DOCUMENTS & RESOURCES

User Manual
Product Brochure

PRODUCT OVERVIEW

The Grundfos circulator pumps, Series UP are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air conditioning systems.

SPECIFICATIONS

Amperage Rating

0.74 A

Bearing Type

Ceramic Radial/Carbon Thrust

Dimensions

5-1/4 in W x 6-1/2 in H

Frequency Rating

60 Hz

Impeller Type

Composite PES

Maximum Pressure

145 psi

Phase

1

Power Rating

85 W

Series

UP Series

Temperature Rating

36 to 205 deg F

Type

Canned Rotor

Voltage Rating

115 V AC
