Item Status:
Discontinued
Availability is limited to remaining stock.
INTERMOUNTAIN SALES (GRUNDFOS)

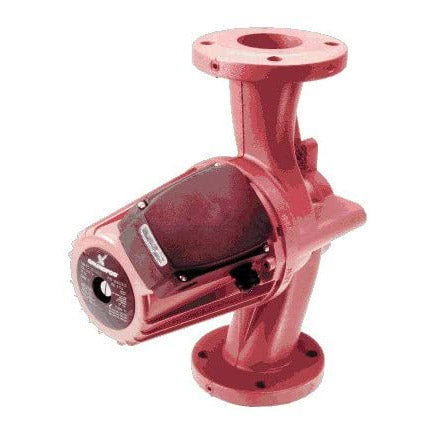

UP43-110F CIRC 115/230V 3/4
UP43-110F CIRC 115/230V 3/4
96439643
Regular price
$2,834.64
Sale price
$2,834.64
Regular price
$4,279.00
Unit price
/
per
Shipping calculated at checkout.
How you'll get this item:
Available to order - Ships in 1 - 3 weeks
This is an estimated lead time. You'll get an email when it ships.
Stores Are Selected During Checkout.
Payment methods
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
DIMENSIONS
DIMENSIONS
|
WIDTH |
12.2 in |
|---|---|
|
HEIGHT |
8.5 in |
|
WEIGHT |
40.57 lb |
PRODUCT OVERVIEW
SPECIFICATIONS
|
Amperage Rating |
5.1/2.7 A |
|---|---|
|
Bearing Type |
Thrust |
|
Dimensions |
12.2 in W x 8.5 in H |
|
Enclosure Type |
IP44 |
|
Flow Rate |
105 gpm |
|
Frequency Rating |
60 Hz |
|
Impeller Type |
304 Stainless Steel |
|
Inlet Size |
1-1/2 in Flange |
|
Maximum Head |
36.09 ft |
|
Maximum Pressure |
124.73 psi |
|
Motor Speed |
3450 rpm |
|
Outlet Size |
1-1/2 in Flange |
|
Phase |
1 |
|
Power Rating |
590 W |
