GRUNDFOS

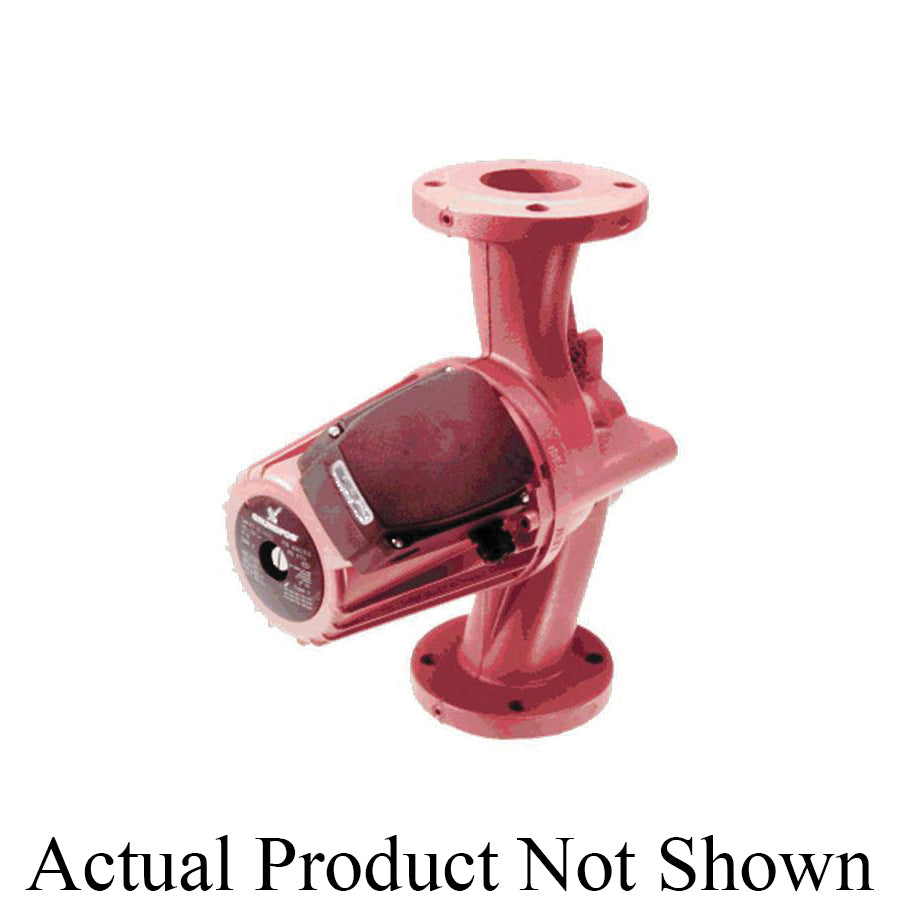

Ups - Circulator Pump with Relay - 67 GPM - 115 V AC

Ups - Circulator Pump with Relay - 67 GPM - 115 V AC

UPS3280/2



Regular price $1,616.56
Sale price $1,616.56 Regular price $2,931.00
Shipping calculated at checkout.

How you'll get this item:

Payment methods
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• 3-speed motor
• Ceramic radial bearings
• Carbon axial bearing
• Stainless steel rotor can, bearing plate and rotor cladding
• Aluminum alloy stator housing
• Cast iron pump housing
• Stator with built-in thermal switch

DIMENSIONS

WIDTH

11.75 in

HEIGHT

11 in

WEIGHT

35.9 lb

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW


The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible.


SPECIFICATIONS

Amperage Rating

2.5 to 2.66 A

Dimensions

11-3/4 in W x 11 in H

Enclosure Type

X4D

Flow Rate

67 gpm

Frequency Rating

60 Hz

Maximum Head

26-1/4 ft

Maximum Pressure

145 psi

Motor Speed

3281 to 3495 rpm

Phase

1

Power Rating

280 W

Series

UPS

Temperature Rating

32 to 104 deg F Ambient

Voltage Rating

115 V AC
