PANASONIC

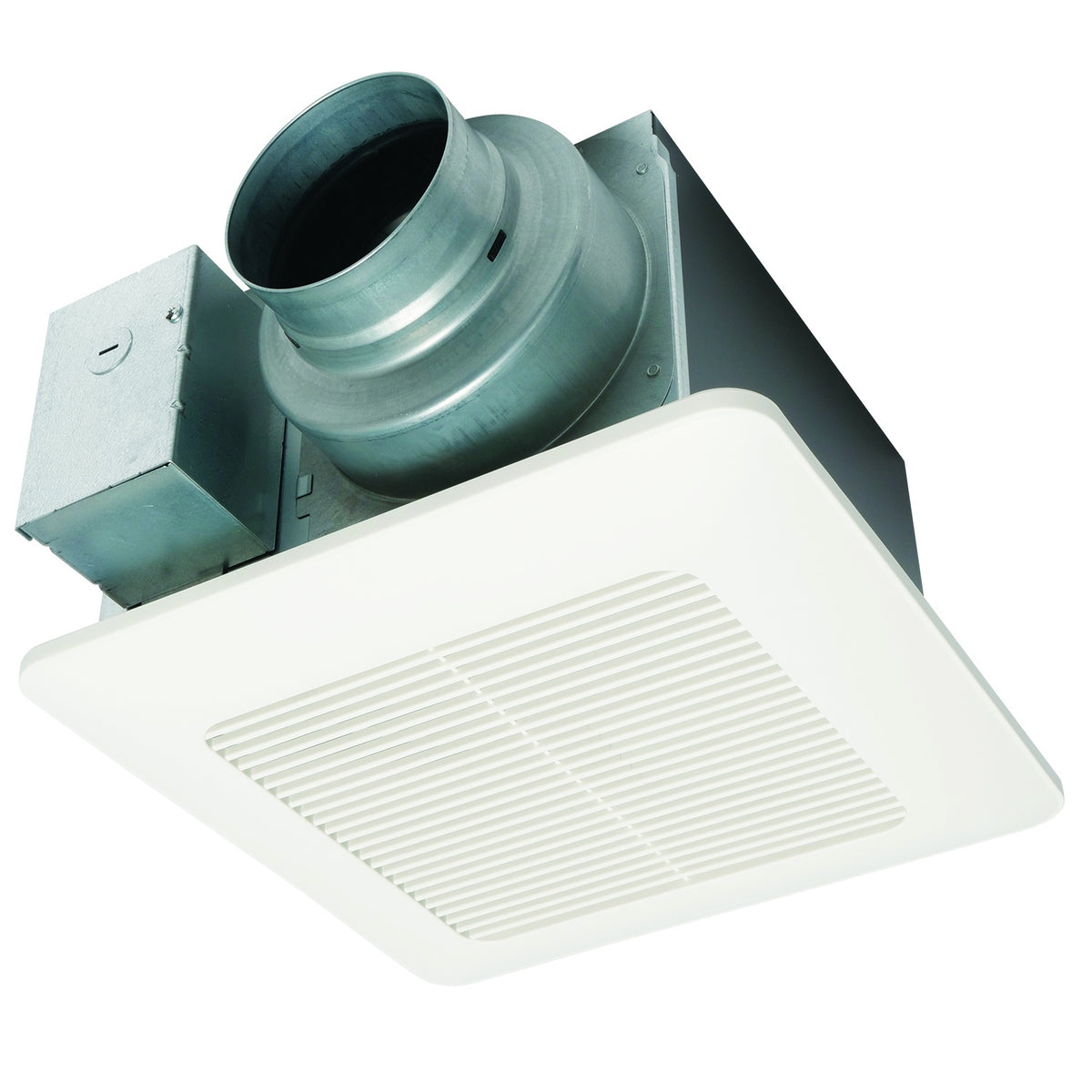

Ventilation Fan with Ecm Motor - 4" - Ceiling Mount

Ventilation Fan with Ecm Motor - 4" - Ceiling Mount

FV-0511VQ1

$165.92
$165.92 $250.00
Shipping calculated at checkout.

How you'll get this item:

  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output
• Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80, 110 cfm models)
• Flex-Z Fast™ bracket provides flexible, fast and trouble-free installation, even from below the ceiling
• Lighted models incorporate one long life, 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination

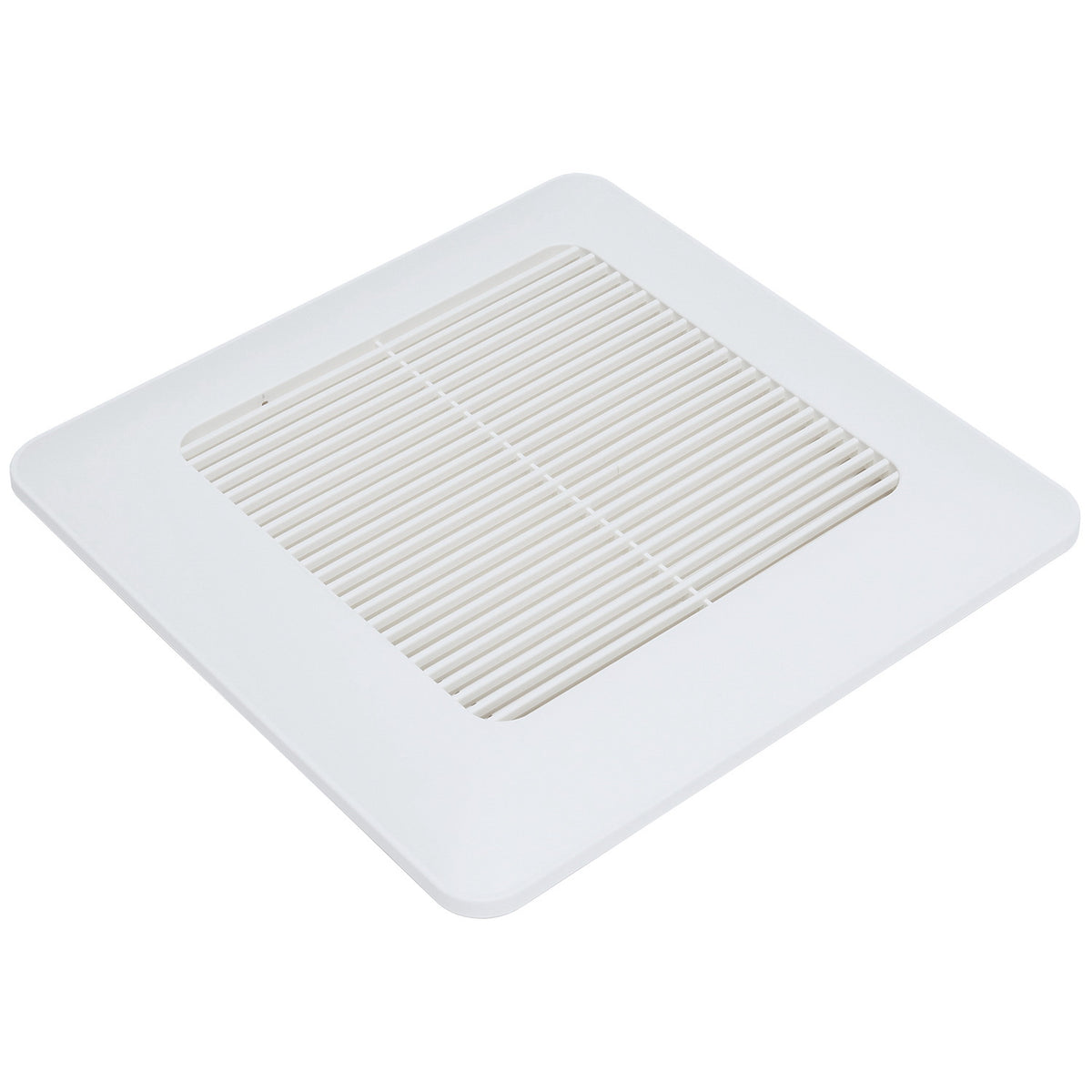

• Elegant grille design compliments the aesthetics of any bathroom
• Single speed

DIMENSIONS

WEIGHT

11.02 lb

WARRANTY

3 Years

DOCUMENTS & RESOURCES

Specification Sheet
Installation Instructions
Warranty Information
Service Manual

PRODUCT OVERVIEW

WhisperCeiling® DC™ precision spot ventilation fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 cfm). Features a ECM motor with SmartFlow™ technology and a Flex-Z Fast™ installation bracket. Can be used to comply with the latest codes and standards.

SPECIFICATIONS

Amperage Rating

0.07 to 0.18 A

Domestic/Import

Import

Duct Diameter

4 in, 6 in

Flow Rate

50/53/80/83/110/111 cfm

Frequency Rating

60 Hz

Grille Length

13 in

Grille Width

13 in

Housing Height

7-3/8 in

Housing Length

10-1/4 in

Housing Material

Zinc Aluminum Magnesium

Housing Width

10-1/4 in

Mounting Type

Ceiling

Power Rating

4/5.9/7.2/10.6/10.8/16.4 W

Type

1-Phase

Voltage Rating

120 V AC
