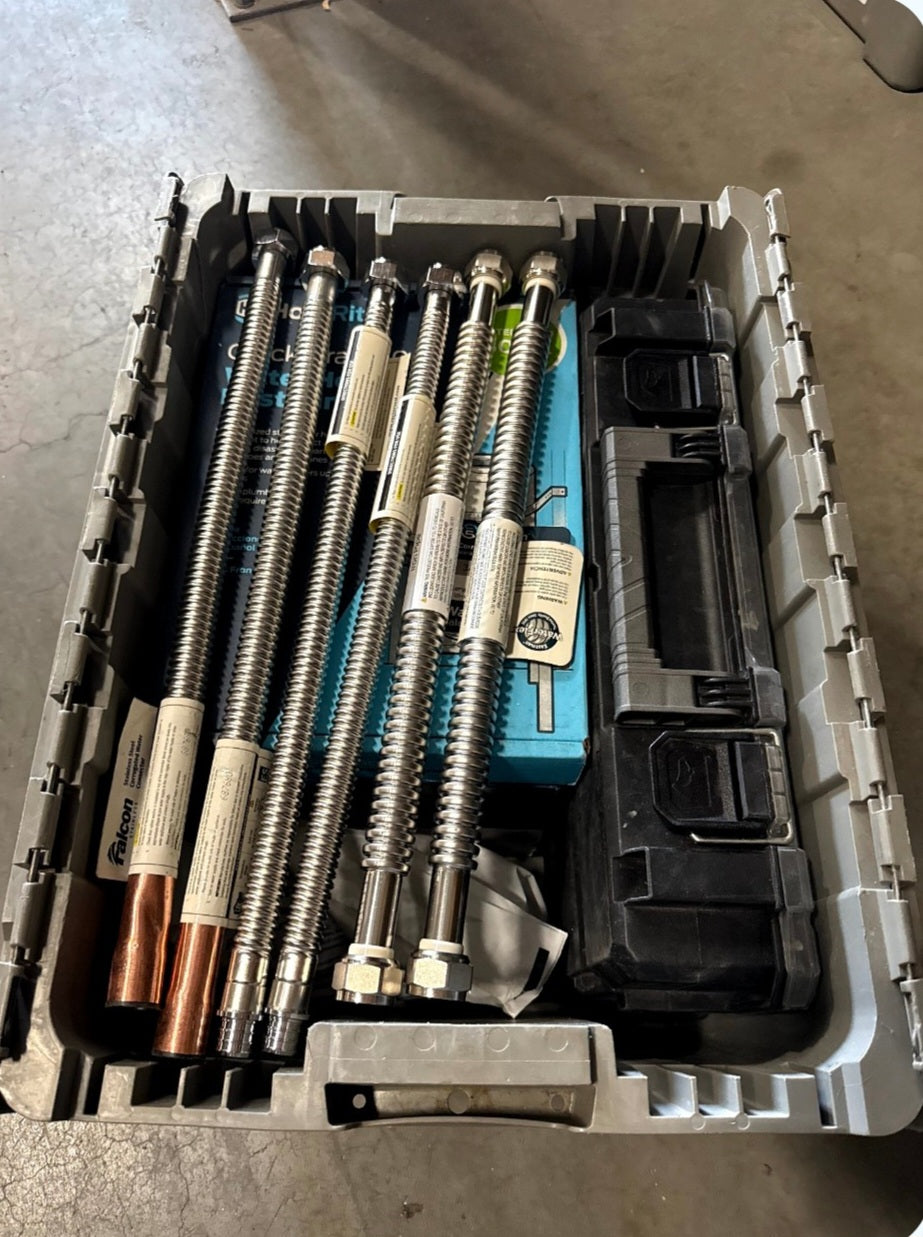

WATER HEATER INSTALL KIT

Water Heater Install Kit

A complete, ready-to-use kit for standard water heater installations. This kit includes all essential components for water, gas, expansion, and seismic requirements—helping ensure a safe, efficient, and code-compliant setup for residential systems.

What’s Inside:

Expansion & Seismic Components – Expansion tank, earthquake straps, and mounting bracket to meet safety and code requirements.

Water Supply Connections – Stainless steel flexible connectors in multiple configurations for easy and secure hot and cold water hookups.

Gas Components – Gas flex connector and shut-off valve for safe and reliable gas supply.

Black Iron Fittings – Nipples, tee, and cap for gas line configuration and adjustments.

Brass Fittings – Elbows, tees, and nipples for durable water line connections.

Drain & Accessories – Water heater drain tube and essential finishing components for proper discharge and installation.

Expansion & Seismic Components

• PET2 – 2.1 Gal Water Heater Expansion Tank × 1
• QB-50-F – Earthquake Belt Holdrite × 1
• QS-50 – Earthquake Strap Holdrite (Box) × 1
• QS-U – Universal Expansion Tank Bracket (2"–14") × 1

Water Supply Connections (Stainless Steel)

• 18SWTXFEM – 3/4" SWT × 3/4" FIP × 18" SS Connector × 2
• FFF18 – 3/4" FIP × 3/4" FIP × 18" SS Connector × 2
• PEX-GF-18 – 3/4" FIP × PEX × 18" SS Connector × 2

Gas Connection Components

• GC1224 – 1/2" × 12" FIP × MIP Gas Flex Connector × 1
• GBV12 – 1/2" Gas Ball Valve × 1

Black Iron Fittings

• B-12-112 – 1/2" × 1-1/2" Black Nipple × 1
• B-12-4 – 1/2" × 4" Black Nipple × 1
• BT-12 – 1/2" Black Tee × 1
• BCA-12 – 1/2" Black Cap × 1

Brass Fittings

• BR90-34 – 3/4" Brass 90° Elbow × 1
• BRT-34 – 3/4" Brass Tee × 1
• BR-34-112 – 3/4" × 1-1/2" Brass Nipple × 1
• BR-34-6 – 3/4" × 6" Brass Nipple × 1

Drain & Accessories

• 66125 – 48" Water Heater Drain Tube × 1
