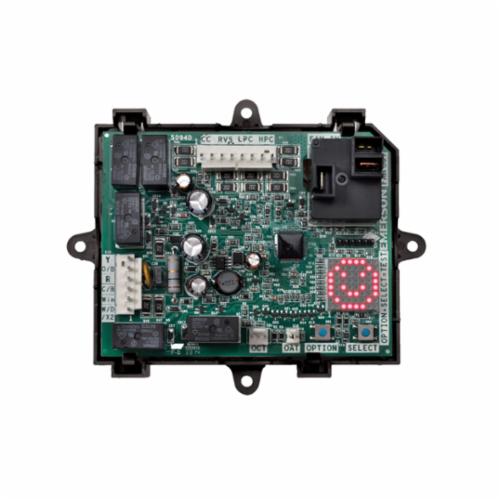

White-Rodgers™ 47D01U-843 Universal Defrost Control, 24 V AC, 50/60 Hz, Import

White-Rodgers™ 47D01U-843 Universal Defrost Control, 24 V AC, 50/60 Hz, Import

47D01U-843

$169.38
$169.38 $97.39
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Compatible with O or B reversing valves
• Configurable for demand or time temperature defrost routines
• Unique 8x8 LED matrix display for configuring menu options and advanced diagnostic
• Quick OEM setup menu, 24V brownout protection, high and low pressure switch inputs, random start delay, low temp compressor cutout, aux heat locks our programmable short cycle delays, reversing valves shift delay
• Replaces 200 plus control
• All timings is accurate to +/- 5% of nominal over the full temperature and voltage ranges at 60hz all timings are 20 percent longer when operated with 50hz power supply
• Versatile matrix display, access set up and diagnostic menus from any orientation
• Easy installation and set up universal mounting with rotating display, pre-configured for major OEM brand, integrated outdoor thermostat
• 0 to 95 percent relative humidity, non condensing humidity ranges
• Compressor protection brown our and short cycle protection plus, hi/low pressure inputs

WARRANTY

Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The 47D01U-843 is the industry's first microprocessor-based universal replacement defrost controller intended for single stage heat pump systems. the control is configurable for both demand, and time/temp defrost routines. the 47D01U-843 replaces hundreds of controls while also offering many premium features beneficial to the contractor and homeowner. Improving energy efficiency by upgrading timed defrost units to demand defrost, and adding electric heat lockouts are just a few energy benefits. the 47D01U-843 is equipped with programmable short cycle delays, random start delay, 24V brownout protection, and reversing valve shift delays. the 47D01U-843 utilizes a unique 8x8 LED matrix human interface to display status and fault codes for ease of set up and service.
