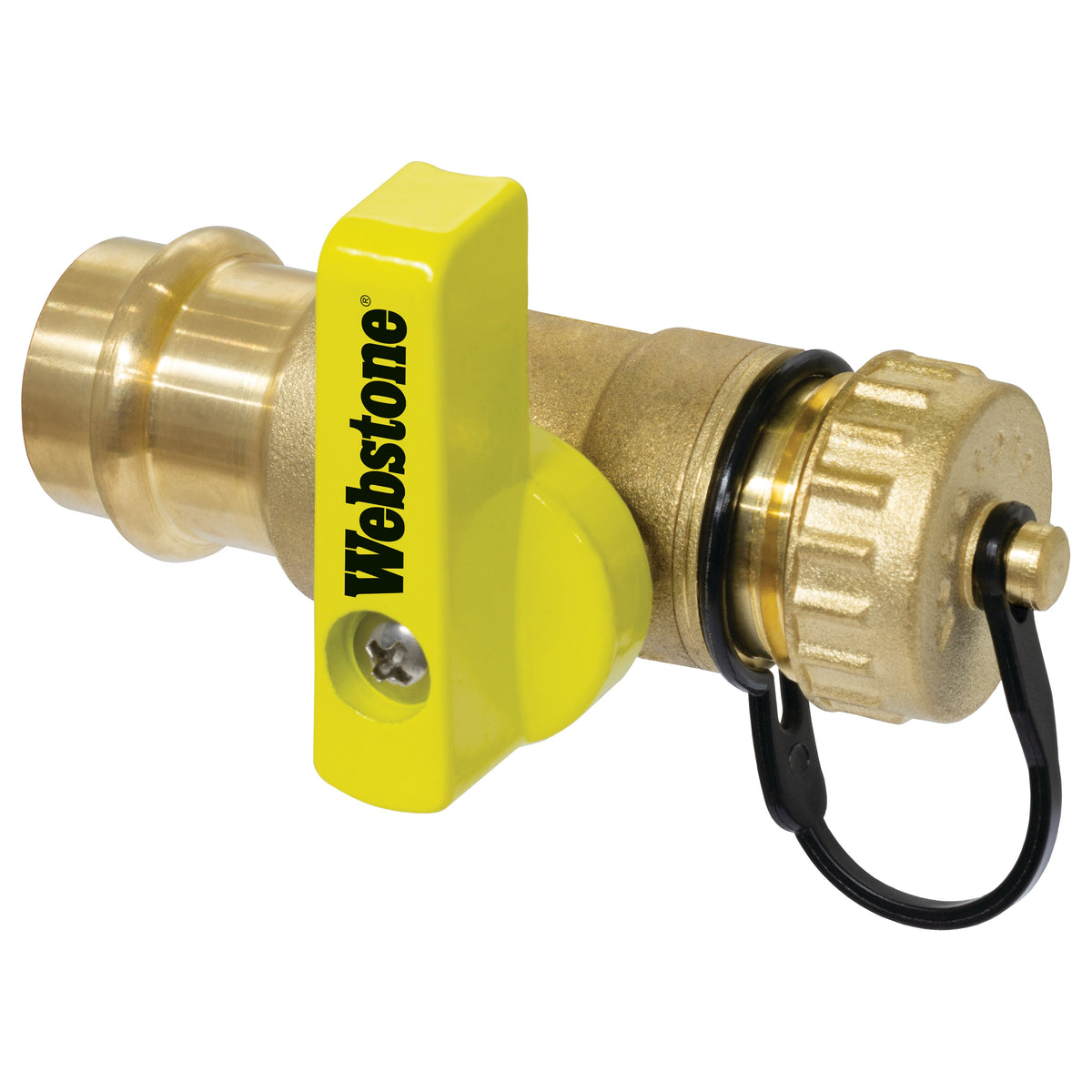

X030 - Ball Valve - Press x Hose
X030 - Ball Valve - Press x Hose
H-80302W
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Hi-flow, quarter-turn alternative to traditional boiler drains
• Straight design for more convenient service access
• Compact handle saves space
• Connections up to 1 1/2 in cover a broad range of applications
• Customize Your Installation, G-Thread model compatible with a host of fittings and accessories
• This valve is actuated by a blowout proof stem
• Adjustable Packing Gland
PRODUCT OVERVIEW
Pro-Pal valves are your best choice for efficient installation and system operation, and for helping to control costs. Pro-Pal Valves combine commonly used components into a single forged brass alternatives that will save time and space in any installation. Instead of just building your next piping system, innovate it with Pro-Pal Series Valves. This unique fitting easily allows you to add a hose connection to an appliance or the end of any line. Designed for use with water, oil, glycol mix in residential or commercial plumbing and heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
SPECIFICATIONS
|
Ball Material |
DZR Brass |
|---|---|
|
Dimensions |
1.2 in H x 2.16 in W x 3.47 in L |
|
Domestic/Import |
Import |
|
End Style |
Press x Hose |
|
Media |
Glycol Mix/Oil/Water |
|
Nominal Size |
1/2 x 3/4 in |
|
Port Type |
Full |
|
Pressure Rating |
250 psi |
|
Series |
H-X030 |
|
Softgoods Material |
PTFE |
|
Temperature Rating |
250 deg F |
|
Trim Material |
Brass |
|
Type |
Ball |

$18.79
