ZOELLER

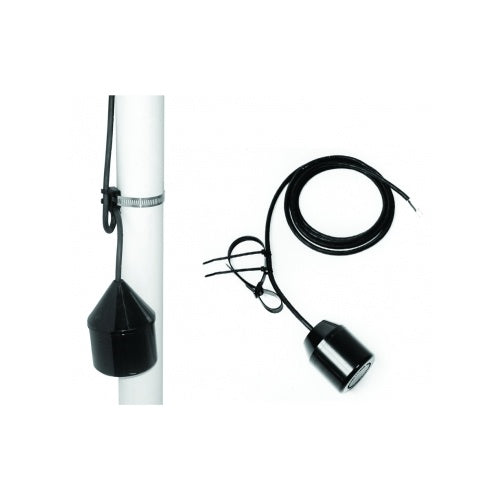

Zoeller® 10-0744 Variable Level Pump Switch, 115/230 V

Zoeller® 10-0744 Variable Level Pump Switch, 115/230 V

10-0744

$58.38
$58.38 $73.00
Shipping calculated at checkout.
Loading availability...
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

MORE PRODUCT INFORMATION

FEATURES

• Float is constructed of impact-resistant and non-corrodible PVC/polypropylene encasing
• 18/2 Type SJOW CPE Cord-Standard
• Approximately 1/2 in liquid level differential in switching action
• Normally open when hanging vertically above liquid level
• Switch closes when it reaches a few degrees above the horizontal position
• Standard mechanical variable level control switches are rated for 115/230V, 5 A

WARRANTY

2 Years Limited

DOCUMENTS & RESOURCES

PRODUCT OVERVIEW

The variable level control switch allows you to adjust the on and off points in a pump tank. Intended for use with a control panel, the float signals to the control panel to activate a nonautomatic pump based on the liquid level in the tank. The float comes with a 20' cord.
