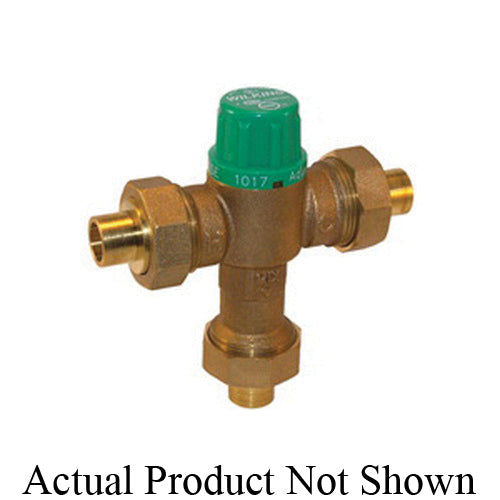

ZW1017XL - 3/4" Thermostatic Mixing Valve - Cast Bronze
ZW1017XL - 3/4" Thermostatic Mixing Valve - Cast Bronze
34-ZW1017XL
How you'll get this item:
Stores Are Selected During Checkout.
COMPLEMENTARY PRODUCTS
MORE PRODUCT INFORMATION
FEATURES
FEATURES
• Installs at the potable water heat source
• 18 gpm flow rate at 45 psi pressure loss
DIMENSIONS
DIMENSIONS
|
HEIGHT |
5.5 in |
|---|
WARRANTY
WARRANTY
1 Year
PRODUCT OVERVIEW
The Aqua-Gard® ZW1017XL Tempering Mixing Valve is designed to be used at the hot water source (residential and most light commercial installations) to mix hot and cold water in the distribution system.
SPECIFICATIONS
|
Body Material |
Cast Bronze |
|---|---|
|
Dimensions |
5-1/2 in H |
|
End Style |
FNPT |
|
Flow Capacity |
18 gpm |
|
Inlet to Outlet Length |
5-7/16 in |
|
Media |
Water |
|
Nominal Size |
3/4 in |
|
Pressure Rating |
145 psi |
|
Series |
ZW1017XL |
|
Softgoods Material |
Nitrile Elastomer Seal/Noryl GFN2 Guide Tube |
|
Temperature Rating |
120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply |
|
Top to Inlet Center |
2 in |
|
Trim Material |
300 Stainless Steel Spring |
